ITECH IT6600D Series

High Power DC Power Supply series

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

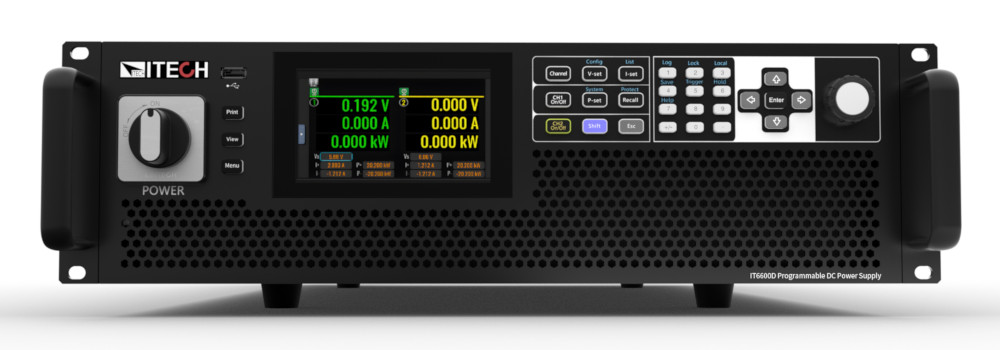

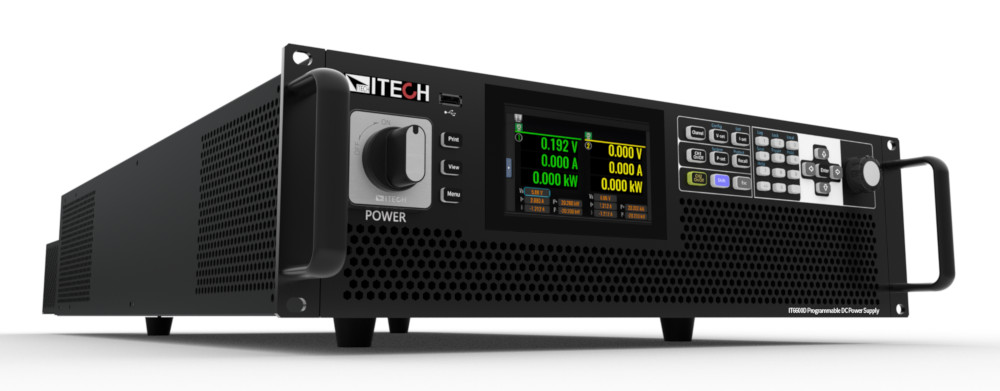

IT6600D series graphical DC power supplies employ touch screens with intuitive GUIs. It makes use of advanced third-generation SiC technology to achieve up to 21kW from each channel of a dual channel 3U chassis. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW. High-precision, high-speed features and a variety of standard communication interfaces enable the IT6600D series to be widely used in laboratories, production lines and automatic test systems.

  • High power density, up to 42kW in 3U
  • Independent dual-channel design in 3U unit, and channels can be connected in series or parallel

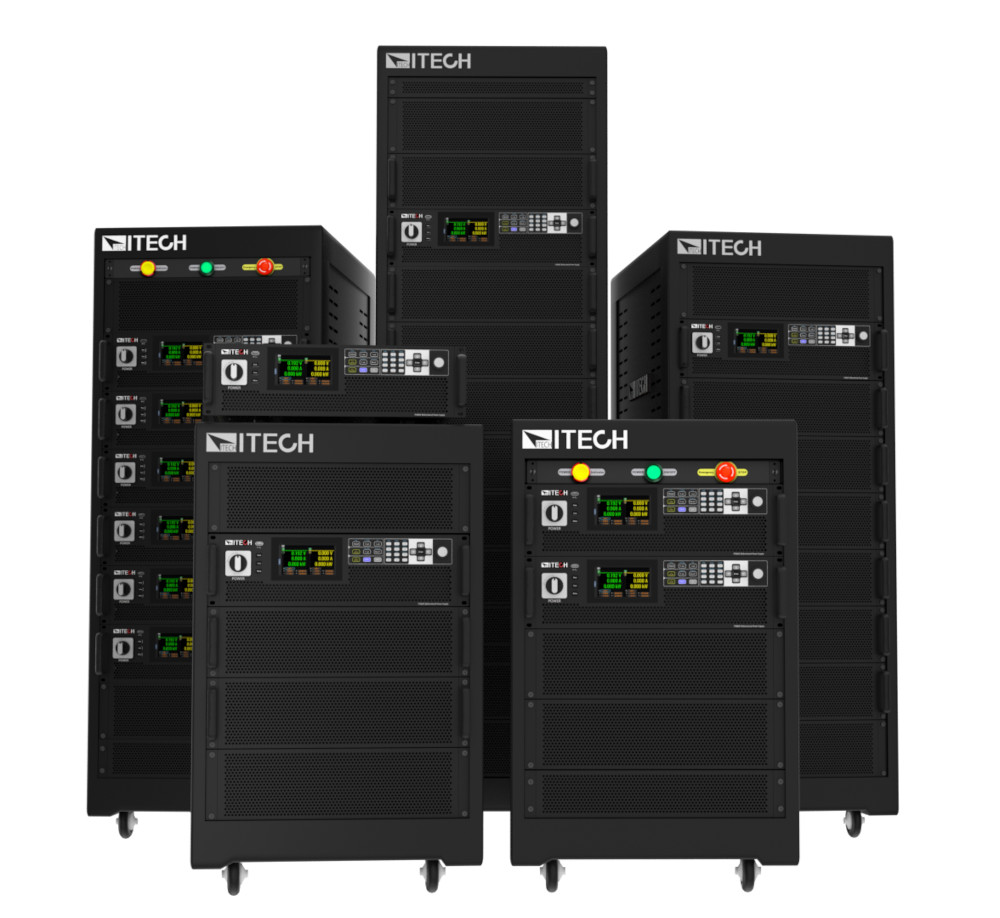

  • Master-slave current sharing, output max. 10MW in parallel with no performance Loss
  • 5-inch touch screen with intuitive GUI
  • Data recorder function
  • Oscilloscope function, instant data analysis and saving
  • CC/CV priority
  • List function, dynamic working condition simulation with tens of millions of points
  • Redundancy function, helps to check the status of each single unit or cabinet and ensure the overall output

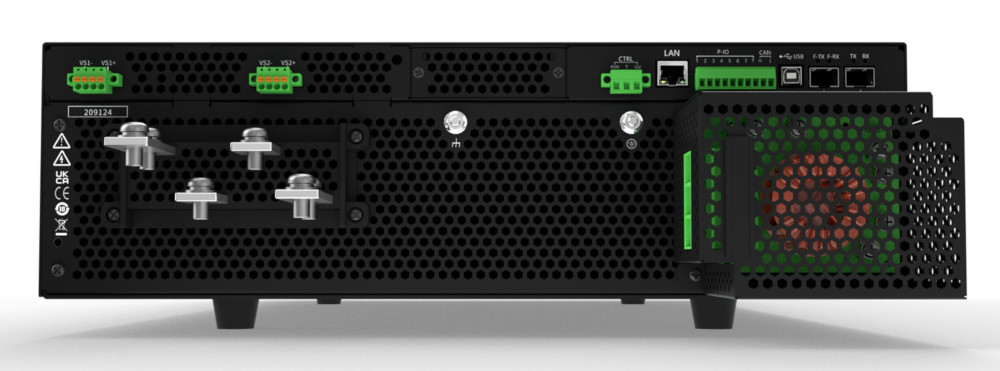

  • USB/CAN/LAN/digital IO as standard with optional GPIB/EtherCAT/analogue & RS232 interfaces

Product Variants

Model Price

IT66126D-1200-600

High Power DC Power Supply 1200V/600A/126kW, 15U 		POA

IT66126D-1600-360

High Power DC Power Supply 1600V/360A/126kW, 15U 		POA

IT66126D-2250-300

High Power DC Power Supply 2250V/300A/126kW, 15U 		POA

IT66168D-1200-800

High Power DC Power Supply 1200V/800A/168kW, 27U 		POA

IT66168D-1600-480

High Power DC Power Supply 1600V/480A/168kW, 27U 		POA

IT66168D-2250-400

High Power DC Power Supply 2250V/400A/168kW, 27U 		POA

IT66210D-1200-1000

High Power DC Power Supply 1200V/1000A/210kW, 27U 		POA

IT66210D-1600-600

High Power DC Power Supply 1600V/600A/210kW, 27U 		POA

IT66210D-2250-500

High Power DC Power Supply 2250V/500A/210kW, 27U 		POA

IT66252D-1200-1200

High Power DC Power Supply 1200V/1200A/252kW, 27U 		POA

IT66252D-1600-720

High Power DC Power Supply 1600V/720A/252kW, 27U 		POA

IT66252D-2250-600

High Power DC Power Supply 2250V/600A/252kW, 27U 		POA

IT66294D-1200-1400

High Power DC Power Supply 1200V/1400A/294kW, 27U 		POA

IT66294D-1600-840

High Power DC Power Supply 1600V/840A/294kW, 27U 		POA

IT66294D-2250-700

High Power DC Power Supply 2250V/700A/294kW, 27U 		POA

IT66336D-1200-1600

High Power DC Power Supply 1200V/1600A/336kW, 37U 		POA

IT66336D-1600-960

High Power DC Power Supply 1600V/960A/336kW, 37U 		POA

IT66336D-2250-800

High Power DC Power Supply 2250V/800A/336kW, 37U 		POA

IT66378D-1200-1800

High Power DC Power Supply 1200V/1800A/378kW, 37U 		POA

IT66378D-1600-1080

High Power DC Power Supply 1600V/1080A/378kW, 37U 		POA

Pages

No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
Options
IT-E176
GPIB communication card for IT-M series 		POA
Options
IT-E177
RS232 & Analogue communication card for IT-M series 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
