Chroma 63600 Series

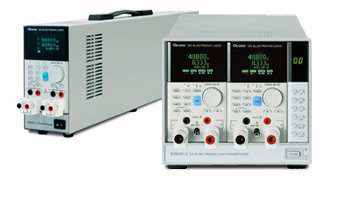

Modular DC Load with 2 or 5 module frames

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

Chroma’s 63600 Modular DC Electronic Load is designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components. They are excellent for use in research, development, production, and incoming inspection applications.

  • Max. Power: 100W x 2(Dual), 300W & 400W
  • Voltage Range: up to 600V
  • 5 module mainframe Max. 2000W, load modules up to 400W/ea
  • Up to 10 channels in one mainframe, fit for testing multiple output SMPS
  • 0.4V @ 80A (Typical) low voltage operating characteristics
  • Flexible CC, CR, CV and CP operation modes
  • CZ mode for turn on capacitive load simulation
  • Parallel mode for high current and power application up to 2kW
  • User defined waveform
  • Multi Channel synchronous control
  • Auto frequency sweep up to 50kHz
  • Real time power supply load transient response simulation and Vpk+/- measurement
  • User programmable 100 sequential front panel input status for user-friendly operating
  • Precision voltage and current measurement
  • Precision high speed digitizing measurement/data capture
  • Voltage, Current and Pmax measurement for OCP/OLP testing
  • Timing measurement for batteries
  • Short circuit simulation
  • Self-test at power-on
  • Full Protection: OC, OP, OT protection and OV alarm
  • Ethernet, USB and GPIB interfaces

Product Variants

Model Price

63600-1

Mainframe for Single Load Modules
POA

63600-2

Mainframe for 2 Load Modules
POA

63600-5

Mainframe for 5 Load Modules
POA

63601-5

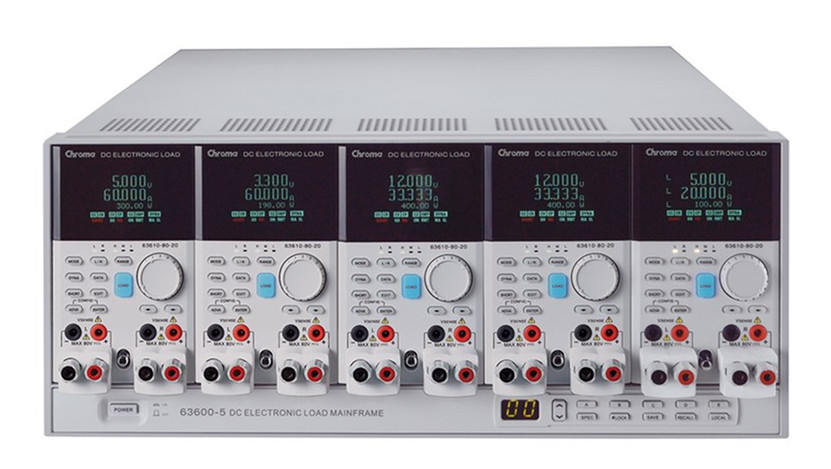

Mainframe for 5 Load Modules
POA

63610-80-20

Load Module 20A/80V/100W x2 channels
POA

63630-600-15

Load Module 15A/600V/300W
POA

63630-80-60

Load Module 60A/80V/300W
POA

63640-150-60

Load Module 150V/60A//400W
POA

63640-80-80

Load Module 80A/80V/400W
POA
Model Description Price
A636000
GPIB Interface for 63600/63200A series POA
A636001
Ethernet Interface for Model 63600-2/63600-5 Series POA
A636010
Ethernet Interface for 63601-5 mainframe & 63200A Series POA
Series Model Price
A636003
External Signal Board (Test Pin) for Model 63600 Series
POA
A636005
External Signal Board (BNC) for Model 63600 Series
POA
A636007
Rack Mounting Kit for 63600-2
POA
A636008
Rack Mounting Kit for 63600-5 (for Europe only)
POA
