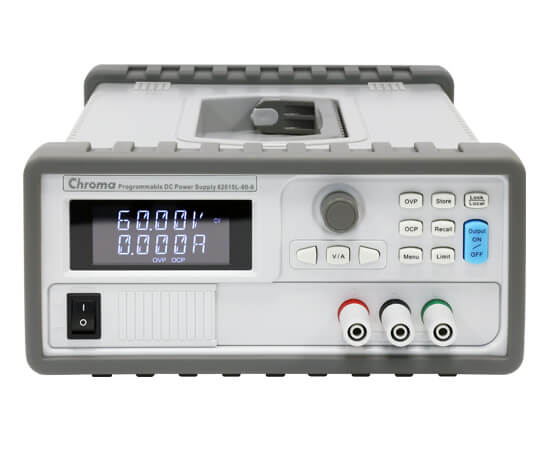

Chroma 62000L Series
Programmable DC Power Supplies with power output options
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
The 62000L Series Programmable DC power supplies have low noise linear performance and fast transient response. The GPIB and USB control interfaces come standard and the auto-ranging output allows you to freely adjust voltage and current without the need to manually select the optimum range allowing all of the power to be available across all of the voltage and current settings. Up to 7 units can be linked in either series or parallel to achieve greater voltage (up to 252V) or current (up to 49A).
- Voltage range: 0 ~ 60V
- Current range: 0 ~ 7A
- Power range: 0 ~ 150W
- Low noise: < 3mVp-p
- Fast transient response time: < 50us
- High-speed programming
- Precision V&I measurements
- Standard GPIB/USB interfaces
- Remote sense (Model 62010L-36-7 only)
- Master-slave parallel and serial control (Model 62010L-36-7 only)
- 8 steps for auto sequencing programming
- 16 storage locations for user-defined operating states
- OVP, Current limit, Thermal protection
- CE Certified
Product Variants
| Model | Price | |
|---|---|---|
62010L-36-7-GProgrammable DC Power Supplies 36V/7A/108W with USB and GPIB |
POA | |
62010L-36-7-LProgrammable DC Power Supplies 36V/7A/108W with USB and Ethernet |
POA | |
62015L-60-6-GProgrammable DC Power Supplies 60V/6A/150W with USB and GPIB |
POA | |
62015L-60-6-LProgrammable DC Power Supplies 60V/6A/150W with USB and Ethernet |
POA |
Data Sheet or Brochure
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
| Series | Model | Price | |
|---|---|---|---|
|
B620001 |
POA |
