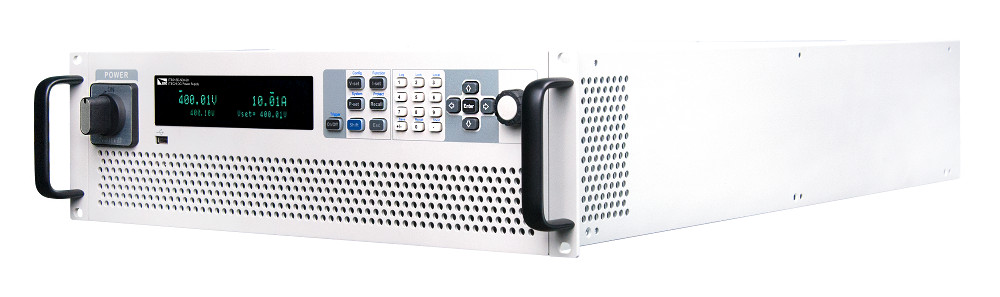

ITECH IT6000D Series
High power DC Power Supply with models from 5 to 144kW, parallel to 2MW
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
- Single unit provides voltage up to 2250V, current up to 8000A
- Master-slave paralleling up to 2 MW
- The adoption of high frequency switching structure supports the automatic switching between CV and CC
- Provides various protections: OVP, OCP, OPP, OTP, protection of power failure and UVP
- Supports data recording of Max, Min, Average values of output voltage and current
- Automatically execution of data sequences
- Power efficiency up to 92%
- High power density of 18kW in 3U
- Supports external data recording function with internal buffering where the PC will periodically read data from the power supply down to a sampling interval of 10μs

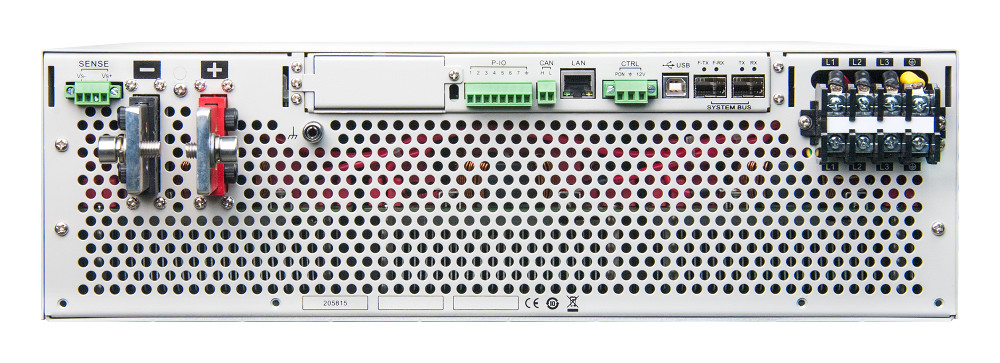

- Built-in communication interfaces of USB/CAN/LAN/Digital IO, and optional GPIB, Analogue and RS232 interfaces
- Supports SCPI protocol
- built-in Web server
Product Variants
| Model | Price | |
|---|---|---|
IT6005D-80-150High power DC Power Supply 5KW, 80V/150A |
POA | |
IT6006D-300-75High power DC Power Supply 6kW, 300V/75A |
POA | |
IT6006D-500-40High power DC Power Supply 500V/40A/6kW |
POA | |
IT6006D-800-25High power DC Power Supply 6kW, 800V/25A |
POA | |
IT6010D-80-300High power DC Power Supply 10KW, 80V/300A |
POA | |
IT6012D-300-150High power DC Power Supply 12kW, 300V/150A |
POA | |
IT6012D-500-80High power DC Power Supply 500V/80A/12kW |
POA | |
IT6012D-800-50High power DC Power Supply 12kW, 800V/50A |
POA | |
IT6015D-80-450High power DC Power Supply 15KW, 80V/450A |
POA | |
IT6015D-80-450SHigh power DC Power Supply 15KW, 80V/450A |
POA | |
IT6018D-1500-40High power DC Power Supply 1500V/40A/18kW |
POA | |
IT6018D-1500-40SHigh power DC Power Supply 1500V/40A/18kW -slave |
POA | |
IT6018D-2250-25High power DC Power Supply 18KW, 2250V/25A |
POA | |
IT6018D-2250-25SHigh power DC Power Supply 18KW, 2250V/25A |
POA | |
IT6018D-300-225High power DC Power Supply 18kW, 300V/225A |
POA | |
IT6018D-300-225SHigh power DC Power Supply 18kW, 300V/225A |
POA | |
IT6018D-500-120High power DC Power Supply 500V/120A/18kW |
POA | |
IT6018D-500-120SHigh power DC Power Supply 500V/120A/18kW -slave |
POA | |
IT6018D-800-75High power DC Power Supply 18kW, 800V/75A |
POA | |
IT6018D-800-75SHigh power DC Power Supply 18kW, 800V/75A |
POA |
