ITECH IT6600C Series
Bidirectional DC Power Supply

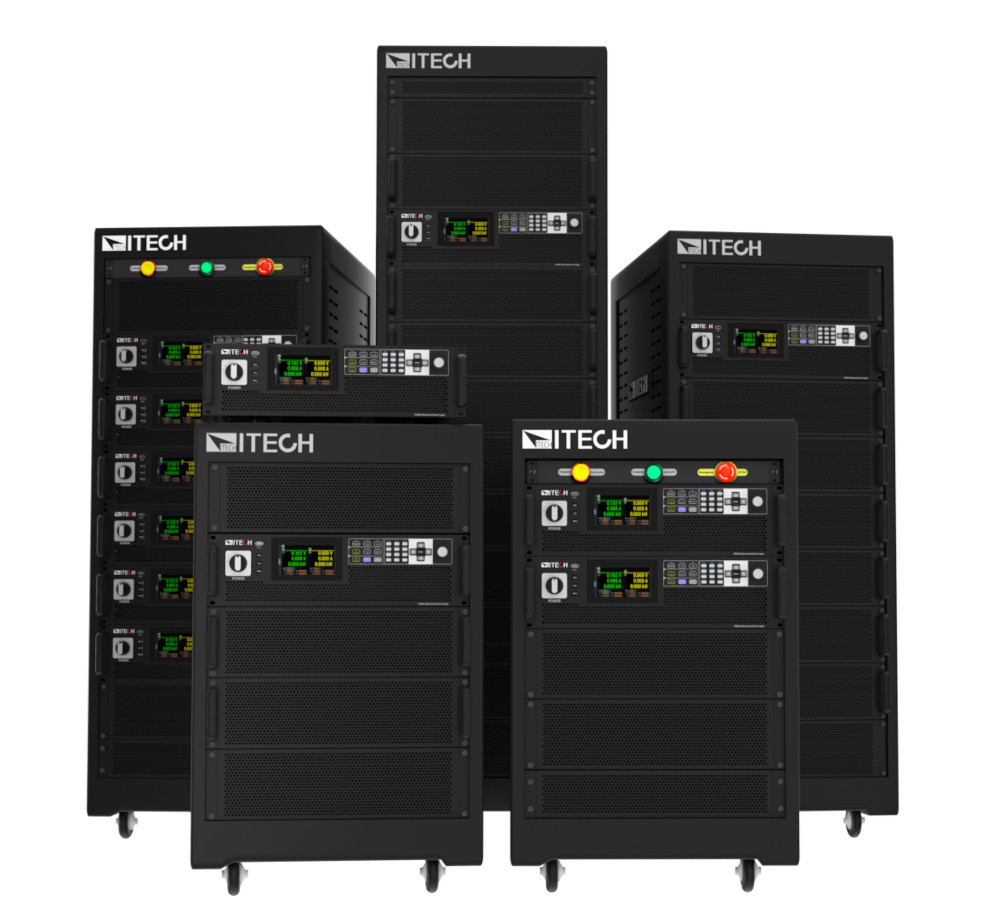

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

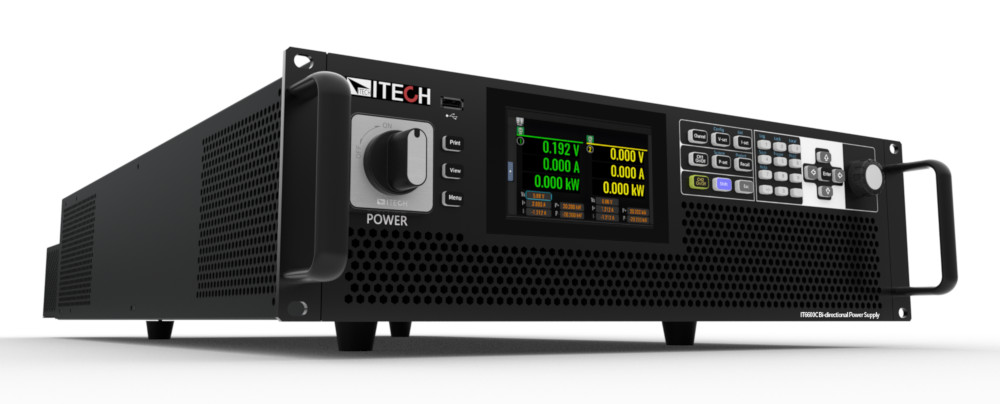

The IT6600C series is a range of graphical bidirectional DC power supplies adopting touch screens with intuitive GUIs. It makes use of advanced third-generation SiC technology in order to achieve power densities of up to 21kW from each channel of a 3U dual channel unit. If the two channels are connected in series/parallel, it can reach a maximum power 42kW. It is not only a power supply, but also an electronic load, absorbing power and feeding clean power back to the local grid with around 95% efficiency.
- Bidirectional, integrating power supply and regenerative e-load in one unit
- High power density, up to 42kW in 3U
- Independent dual-channel design in 3U unit, and channels can be connected in series or parallel
- High efficiency power regeneration
- Master-slave current equalizing, output max. 10MW in parallel with no performance loss

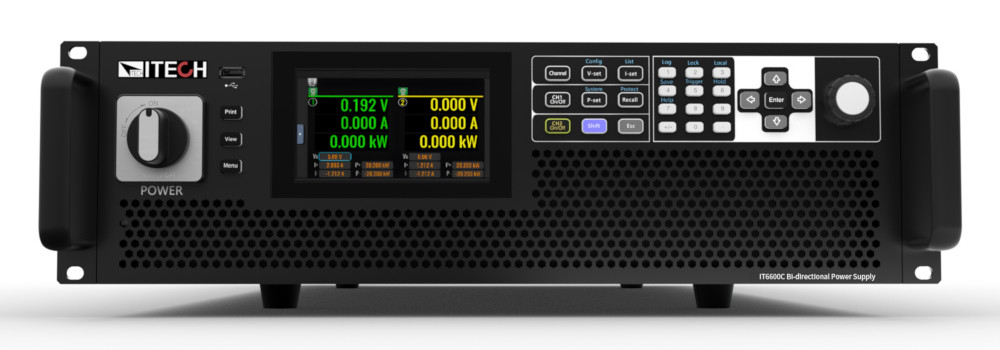

- 5-inch touch screen with intuitive GUI
- Dynamic response ≤200us, Rise time ≤1ms, High precision ≤0.03%+30mA

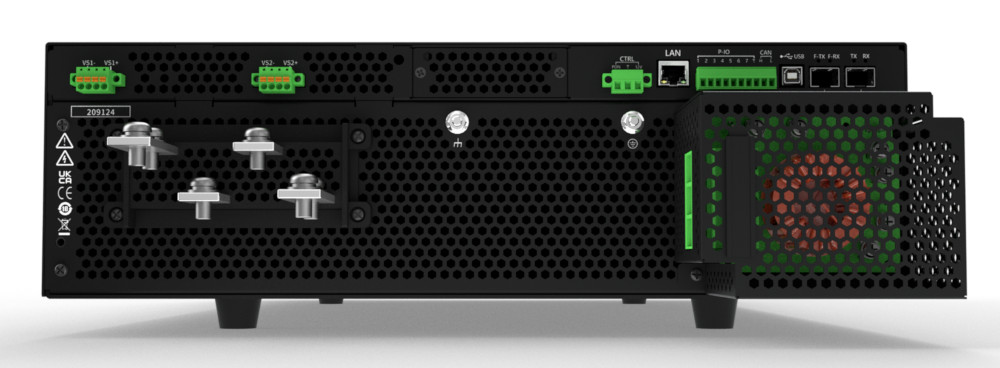

- USB/CAN/LAN digital IO as standard, optional GPIB/EtherCAT/analogue & RS232
Product Variants
| Model | Price | |
|---|---|---|
IT66126C-1200-600Bidirectional DC Power Supply 1200V/±600A/±126kW, 15U |
POA | |
IT66126C-1600-360Bidirectional DC Power Supply 1600V/±360A/±126kW, 15U |
POA | |
IT66126C-2250-300Bidirectional DC Power Supply 2250V/±300A/±126kW, 15U |
POA | |
IT66168C-1200-800Bidirectional DC Power Supply 1200V/±800A/±168kW, 27U |
POA | |
IT66168C-1600-480Bidirectional DC Power Supply 1600V/±480A/±168kW, 27U |
POA | |
IT66168C-2250-400Bidirectional DC Power Supply 2250V/±400A/±168kW, 27U |
POA | |
IT66210C-1200-1000Bidirectional DC Power Supply 1200V/±1000A/±210kW, 27U |
POA | |
IT66210C-1600-600Bidirectional DC Power Supply 1600V/±600A/±210kW, 27U |
POA | |
IT66210C-2250-500Bidirectional DC Power Supply 2250V/±500A/±210kW, 27U |
POA | |
IT66252C-1200-1200Bidirectional DC Power Supply 1200V/±1200A/±252kW, 27U |
POA | |
IT66252C-1600-720Bidirectional DC Power Supply 1600V/±720A/±252kW, 27U |
POA | |
IT66252C-2250-600Bidirectional DC Power Supply 2250V/±600A/±252kW, 27U |
POA | |
IT66294C-1200-1400Bidirectional DC Power Supply 1200V/±1400A/±294kW, 27U |
POA | |
IT66294C-1600-840Bidirectional DC Power Supply 1600V/±840A/±294kW, 27U |
POA | |
IT66294C-2250-700Bidirectional DC Power Supply 2250V/±700A/±294kW, 27U |
POA | |
IT66336C-1200-1600Bidirectional DC Power Supply 1200V/±1600A/±336kW, 37U |
POA | |
IT66336C-1600-960Bidirectional DC Power Supply 1600V/±960A/±336kW, 37U |
POA | |
IT66336C-2250-800Bidirectional DC Power Supply 2250V/±800A/±336kW, 37U |
POA | |
IT66378C-1200-1800Bidirectional DC Power Supply 1200V/±1800A/±378kW, 37U |
POA | |
IT66378C-1600-1080Bidirectional DC Power Supply 1600V/±1080A/±378kW, 37U |
POA |
Pages
Data Sheet or Brochure| Model | Description | Price | |
|---|---|---|---|
|
BSS2000 Basic |
Battery simulation software - basic version | POA | |
|
BSS2000 Pro |
Battery simulation software - pro version | POA | |
|
BSS2000M |
Battery simulation software (multi-channel, ≤ 20 channel) | POA | |
|
FCS3000 |
Fuel Cell Simulation Software | POA |
