Advanced Test and Measurement
Instruments and Power Supplies

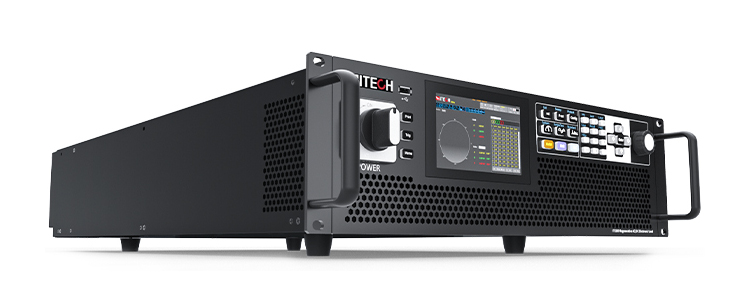

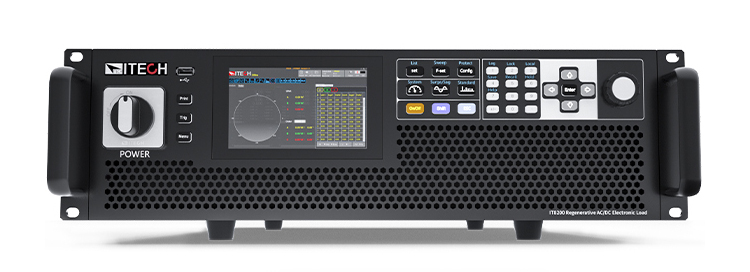

ITECH IT8200E Series

Regenerative AC/DC Load with models from 21 to 231kVA

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

IT8200E series regenerative AC/DC electronic load can efficiently feed power back to the grid. In a 3U rack, it can input up to 21kVA. Through master-slave paralleling, its power can be expanded to more than 1MVA.

  • Uses advanced SiC technology to achieve power density of 21kVA in 3U
  • Master/Slave parallel power up to more than 1MVA
  • up to 88% energy regeneration efficiency
  • Comprehensive working modes selectable: single-phase, three-phase, reverse phase (split phase). Rated voltage can be extended to 200% under reverse phase (split phase)
  • Frequency: 16-500Hz
  • Supports NORMAL/LIST/SWEEP/Surge & Sag modes
  • Built-in various waveforms
  • Touch screen, simple UI for easy operation
  • Built-in USB/CAN/LAN/Digital IO interface, optional GPIB/Analogue & RS232
  • AC mode supports CC/CP/CR/CS/CC+CR/CE multiple working modes, CE mode can simulate 14 circuit topologies such as single-phase rectifier RLC and parallel RLC
  • AC mode supports both rectification and non-rectification modes
  • DC mode supports 9 working modes such as CC/CR/CP/CV
  • Adjustable crest factor: 1.414 ~ 5.0 and phase shift from -90º to 90.0º
  • Comprehensive harmonics measurement and analysis, up to 50th harmonic

Product Variants

Model Price

IT82105E-350-525

Regenerative AC/DC Load 525Arms(1Φ)/175Arms(3Φ)/105kVA/27U 		POA

IT82126E-350-630

Regenerative AC/DC Load 630Arms(1Φ)/210Arms(3Φ)/126kVA/27U 		POA

IT82147E-350-735

Regenerative AC/DC Load 735Arms(1Φ)/245Arms(3Φ)/147kVA/27U 		POA

IT82168E-350-840

Regenerative AC/DC Load 840Arms(1Φ)/280Arms(3Φ)/168kVA/37U 		POA

IT82189E-350-945

Regenerative AC/DC Load 945Arms(1Φ)/315Arms(3Φ)/189kVA/37U 		POA

IT82210E-350-1050

Regenerative AC/DC Load 1050Arms(1Φ)/350Arms(3Φ)/210kVA/37U 		POA

IT8221E-350-105

Regenerative AC/DC Load 105Arms(1Φ)/35Arms(3Φ)/21kVA/3U 		POA

IT82231E-350-1155

Regenerative AC/DC Load 1155Arms(1Φ)/385Arms(3Φ)/231kVA/37U 		POA

IT8242E-350-210

Regenerative AC/DC Load 210Arms(1Φ)/70Arms(3Φ)/42kVA/6U 		POA

IT8263E-350-315

Regenerative AC/DC Load 315Arms(1Φ)/105Arms(3Φ)/63kVA/15U 		POA

IT8284E-350-420

Regenerative AC/DC Load 420Arms(1Φ)/140Arms(3Φ)/84kVA/27U 		POA
Model Description Price
IT-E176
 GPIB communication card for IT-M series POA
IT-E177
 RS232 & Analogue communication card for IT-M series POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
IT-E168
Optical fibre cable for IT6000 and IT8000 		POA
Accessories
IT-E169
Optical fibre cable for parallel for IT6000 and IT8000 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
