Chroma 11802/11803/11805/11890/11891

Programmable HF AC Tester with power and frequency options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

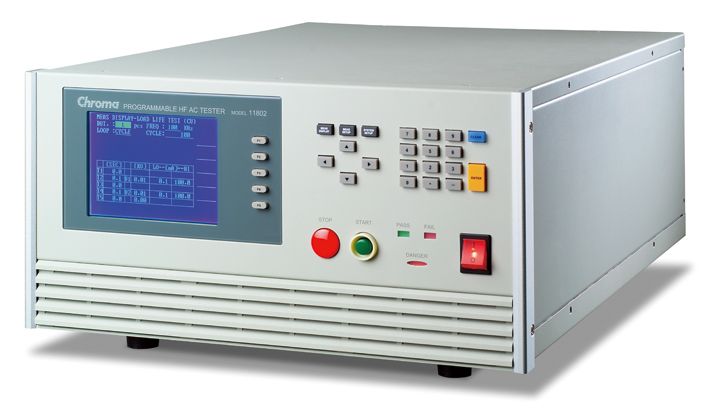

Programmable HF AC Tester Model 11802/11803/11805
HF Hipot Tester Model 11890
HF HV Load Life Tester Model 11891

  • HF HV Load Life Test (CV and CC mode)
  • HF Withstand Voltage Test (CV and CC mode)
  • HF Breakdown Voltage Test (CV mode)
  • Test frequency: 20kHz ~1MHz
  • Wide output voltage and current range while combine with different module (Module is customized and based on the tester's power)
  • Output voltage and current monitor
  • Programmable output voltage waveform control
  • Cycle count mode or time count mode for load life test timer
  • Lower power consumption and lower temperature rising design
  • Large LCD (320 x 240 dot-matrix)
  • Built-in digital timer

Product Variants

Model Price

11802

Programmable HF AC Tester 500VA 		POA

11803

Programmable HF AC Tester 800VA/1MHz 		POA

11805

Programmable HF AC Tester 1000VA 		POA

11805-A

Programmable HF AC Tester 500kHz 		POA

11890

Programmable HF AC Tester Hipot Tester 		POA

11891

Programmable HF AC Tester HF HV Load Life Tester 		POA
Model Description Price
A118011
 H.F. Current Step-up Module 50A/10V Max for Model 11802 POA
A118013
 H.F. Voltage Step-up Module 5.0kV/100mA Max. for Model 11802 POA
A118014
 H.F. Voltage Step-up Module 2.5kV/200mA Max. for Model 11802 POA
A118015
 H.F. Ripple Current Test Module 30A/100kHz Max. for Model 11805 POA
A118016
 H.F. Voltage Step-up Module 250V/2A Max. for Model 11802/90 POA
A118018
 H.F. Voltage Step-up Module 1kV/1A Max. for Model 11805 POA
A118019
 H.F. Current Step-up Module 30A/16V Max for Model 11802 POA
A118026
 AC/DC Coupling Test Fixture 60A Max, 1 channel only for Model 11802 POA
A118031
 H.F. Voltage Step-up Module 5kV/100mA Max. for Model 11802 + Shielding POA
A118032
 H.F. Voltage Step-up Module 1kV/500mA Max. for Model 11802 POA
A118034
 H.F. Voltage Step-up Module 2.5kV/400mA Max. for Model 11805 POA
A118037
 H.F. Current Step-up Module 30V/25A/1MHz Max. for 11803 POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
A118024
Rack Mounting Kit for Model 11802/105/90 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
