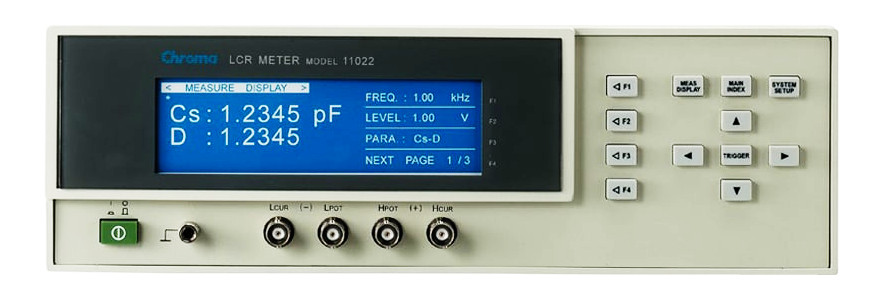

Chroma 11022

LCR Meter - dual frequency

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Chroma 11022 LCR Meter is passive component tester designed to give a cost effective alternative equivalent to high priced meters for demanding applications in production test, incoming inspection, component design, and evaluation. Programmable test signal level settings are from 10mV to 1V in steps of 10mV, and the VM/IM signal level monitor functions allow you to evaluate your devices at the level you specify. Ten test frequencies of 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, and 100kHz can be used to evaluate passive components and transformers/LF coils.

  • 0.1% basic accuracy
  • 0Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz test frequencies
  • 21ms measurement time (≥100Hz)
  • Agilent 4263B LCR Meter commands compatible
  • 4 different output resistance modes selectable for non-linear inductor and capacitor measuring
  • High resolution in low impedance (0.01mΩ) and high accuracy 0.3% on 100mΩ range
  • wide 0.01mΩ ~ 99.99MΩ measurement range (4½ digits)
  • Dual frequency function (11022 option) for automatic production
  • BIAS comparator function
  • Comparator function and 8/99 bin-sorting function
  • Pass/fail judge result for automatic production
  • Handler interface trigger edge (rising/falling) programmable
  • Test signal level monitor function
  • Standard RS-232, GPIB, and Handler I/F
  • Open/short zeroing, load correction
  • LabVIEW® Driver
