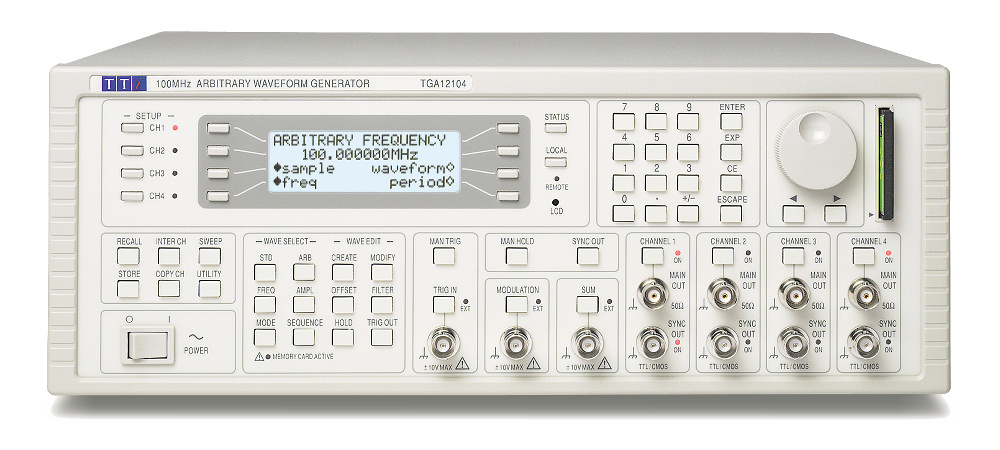

Aim-TTi TGA12100 Series

DISCONTINUED - True Arbitrary Waveform Generators, 100MS/s with one, two or four channels

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • 1, 2 or 4 waveform channels, independent or linked.
  • 100MS/s 12-bit arbitrary waveform capability using true variable clock architecture.
  • 1M point waveform memory per channel.
  • 40MHz function generators using DDS (direct digital synthesis).
  • Multiple ‘standard’ waveforms including sine, square, triangle, haversine, ramp, pulse and sin(x)/x.
  • Pulse train pattern generation for up to 10 pulses.
  • Complex waveform sequencing and looping capability using up to 1024 waveform segments.
  • Wide range sweep, AM, tone switching, signal summing.
  • Inter-channel triggering, summing and phase control.
  • Multiple generators can be easily phase locked.
  • External ARB clock input
  • Waveform creation/editing tools built-in; sophisticated external Windows based software included.
  • Built-in trigger generator, gated and triggered burst modes.
  • Tone switching facilitates precision DTMF generation.
  • Unlimited waveform storage using CF memory cards.
  • GPIB (IEEE-488.2), RS-232 and USB interfaces.

Product Variants

There are no available products to list here. Please contact us if you can't find what you're looking for.
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
