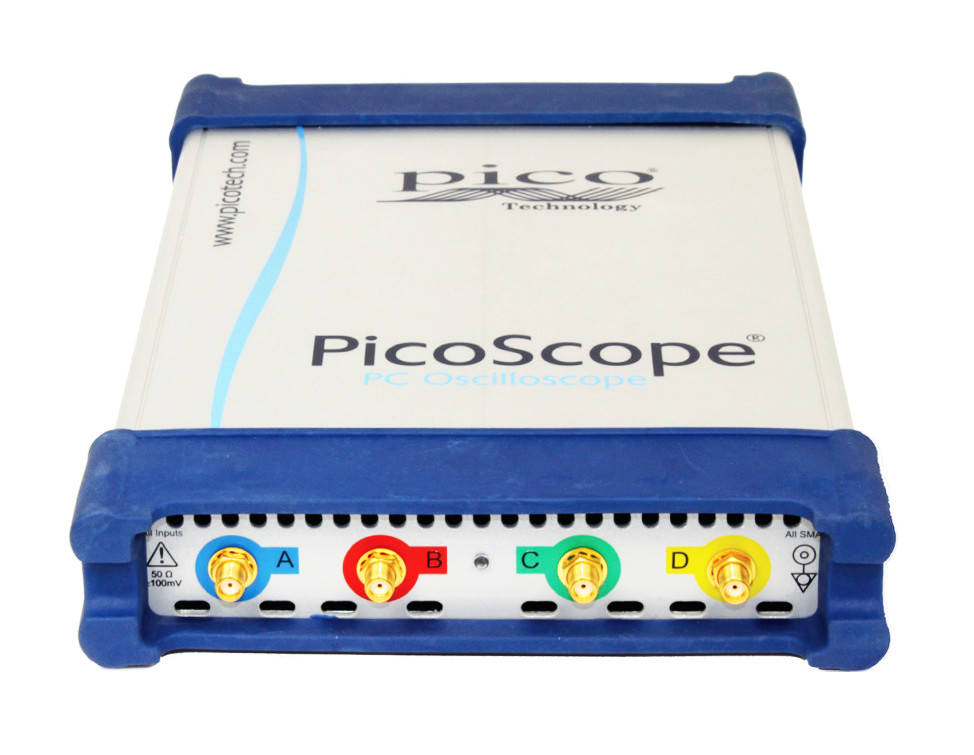

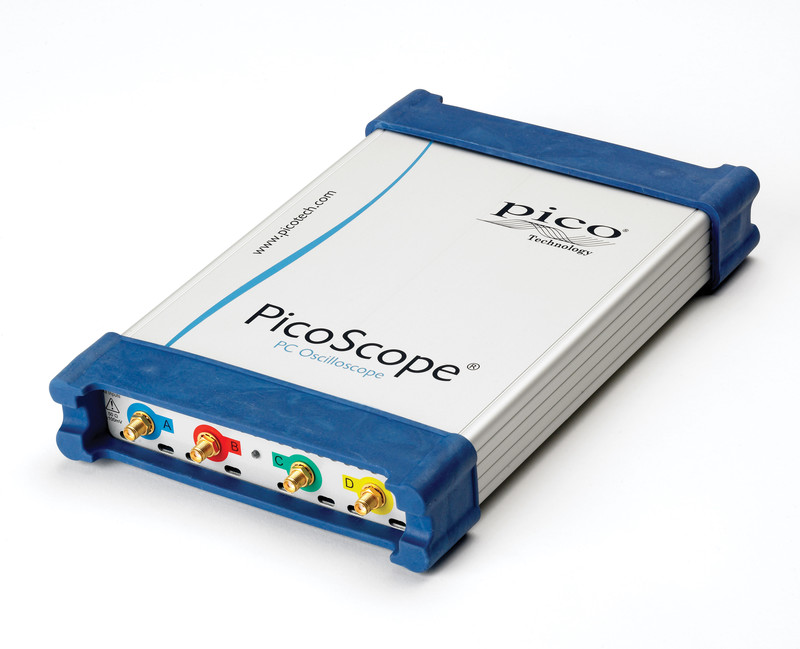

Pico Technology PicoScope 6407

DISCONTINUED: PicoScope 6407 high-speed digitizer

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The PicoScope 6407 is a compact USB plug-in device that turns your PC or laptop into a 4-channel, high-speed digitizer. The PicoScope 6407 differs from the rest of the PC oscilloscopes in the PicoScope 6000 series in that it has high-bandwidth 50 Ω inputs with fixed ±100 mV input ranges and SMA connectors. Larger input signals can be accommodated with the use of external attenuators (see accessories).

  • 4 channels (fixed ±100 mV)
  • 1 GHz bandwidth
  • 1 GS buffer size
  • 5 GS/s real-time sampling
  • Segmented memory / rapid block trigger
  • Built-in function generator/AWG
  • Drivers and SDK included (Windows, Linux, Mac)
  • PicoScope application software included
