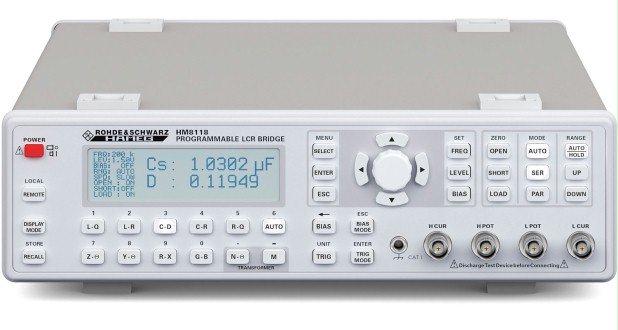

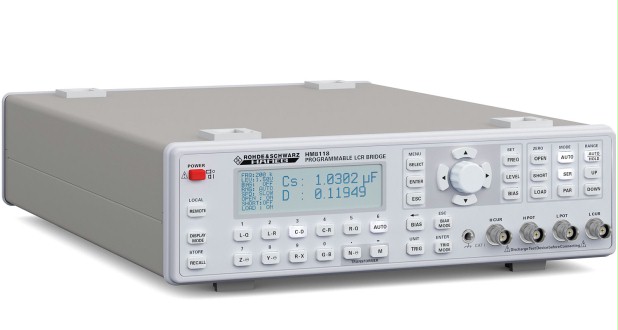

Rohde and Schwarz HM8118
DISCONTINUED: LCR Bridge meter
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
- Measurement range: 20 Hz to 200 kHz (69 steps)
- Basic accuracy: 0.05 %
- Measurement rate: up to 12 values/s
- Automatic or manual selection of circuit type (serial, parallel)
- Measurement functions: L, C, R, |Z|, X, |Y|, G, B, D, Q, Φ, ∆, M, N
- Transformer measurement: mutual inductance and ratio
- Internal: 0 V to 5 V/0 mA to 200 mA (resolution: 10 mV/1 mA)
- External: 0 V to 40 V (bias voltage only)
- RS-232/USB dual interface for remote control
- Fanless design
- This product series was previously branded HAMEG
