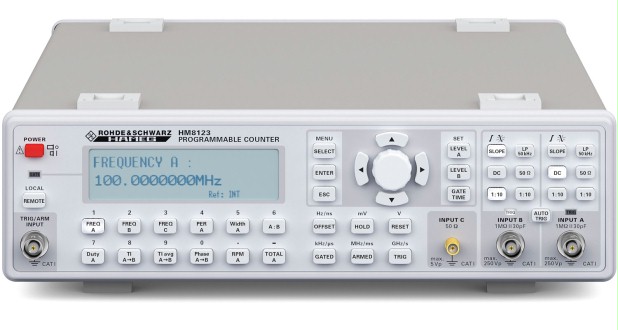

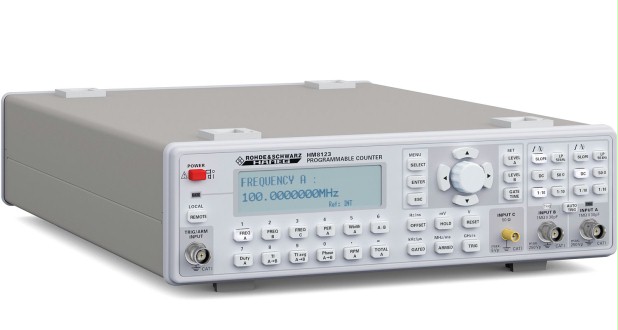

Rohde and Schwarz HM8123
DISCONTINUED - 3GHz Frequency Counter with TCXO or OCXO
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
- Measurement range: DC to 3 GHz
- Input A/B (BNC): DC to 200 MHz
- Input C (SMA): 100 MHz to 3 GHz
- Input impedance A/B: 50 Ω or 1 MΩ (switchable), sensitivity 25 mV
- Input impedance C: 50 Ω, sensitivity 30 mV
- 10-digit resolution (at 10 s gate time)
- Nine measurement functions, external GATE and ARMING connectors (BNC)
- External reference input/output (10 MHz) via BNC connector
- HM8123: TCXO (temperature stability: ±0.5 x 10-6), HM8123-X: OCXO (temperature stability: ±1.0 x 10-8)
- RS-232/USB dual interface, optionally IEEE-488 (GPIB)
- Fanless design
- This product series was previously branded HAMEG
