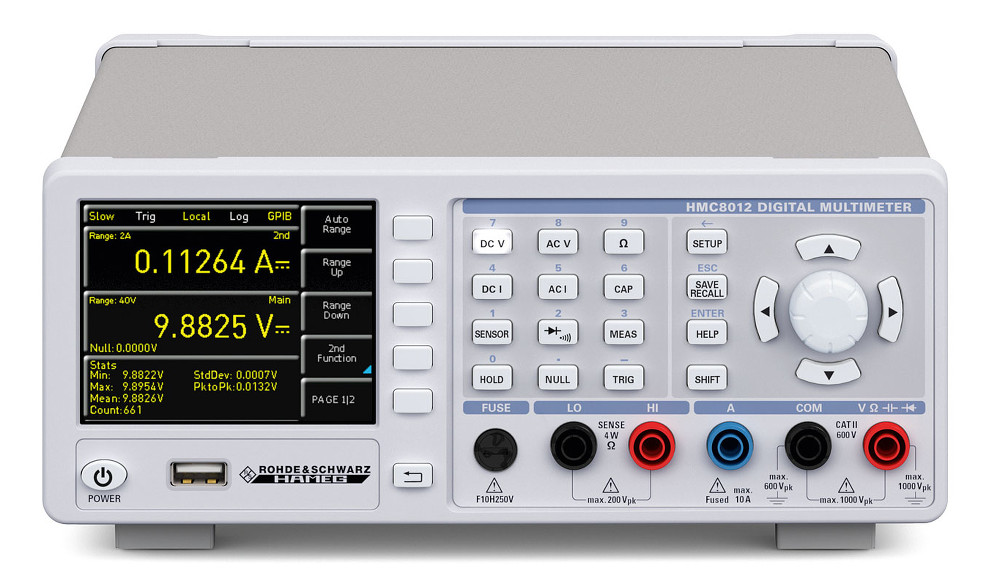

Rohde and Schwarz HMC8012
DISCONTINUED - Digital Multimeter, 5.75 digit with or without GPIB
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
- Measurement range: DC to 100 kHz
- Resolution: 1 μV, 100 nA, 1 mΩ, 1 pF, 1 Hz, 0.1 °C/F
- Basic accuracy: 0.015 % (DC)
- 5¾-digit display (480 000 counts)
- Simultaneous display of three measurement functions, e.g. DC + AC + statistics
- Measurement rate: up to 200 values/s
- Measurement functions: V (DC), I (DC), V (AC), I (AC), frequency, DC power, resistance (two and fourwire), temperature (PT100/PT500/PT1000), capacitance, diode and continuity test
- Maths functions: limit testing, min./max., average, offset, DC power, dB, dBm
- Data logging to internal memory or USB flash drive in CSV format
- Interfaces: USB-TMC/-VCP, Ethernet, LXI, IEEE-488 (GPIB)
- SCPI commands largely compatible with Agilent 34410A (HMC8012-G): HMC8012 incl. IEEE-488 (GPIB) interface
- This product series was previously branded HAMEG
