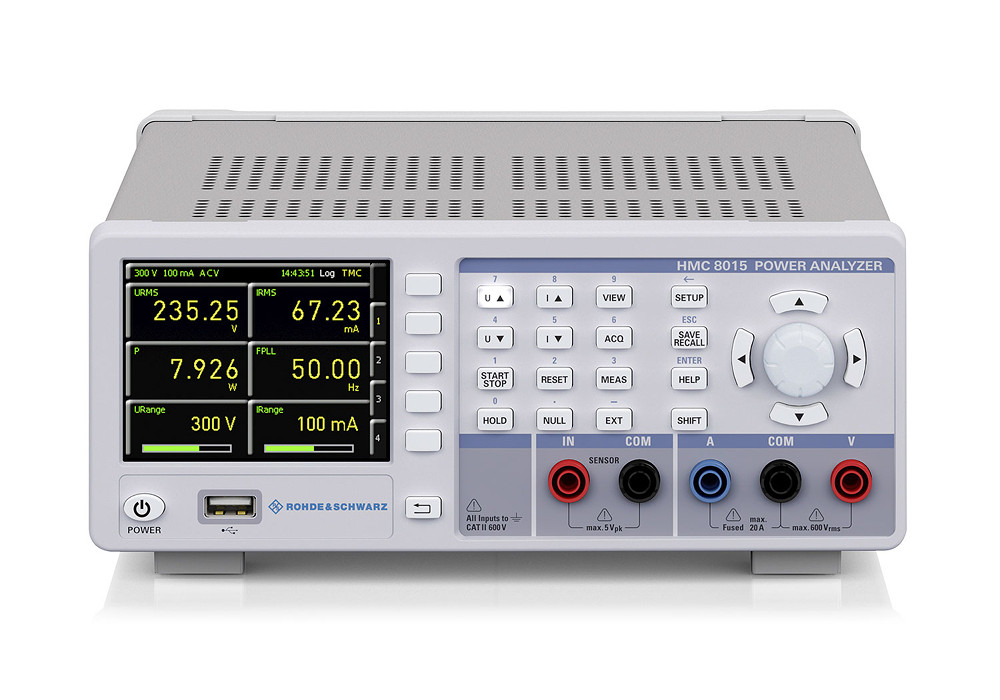

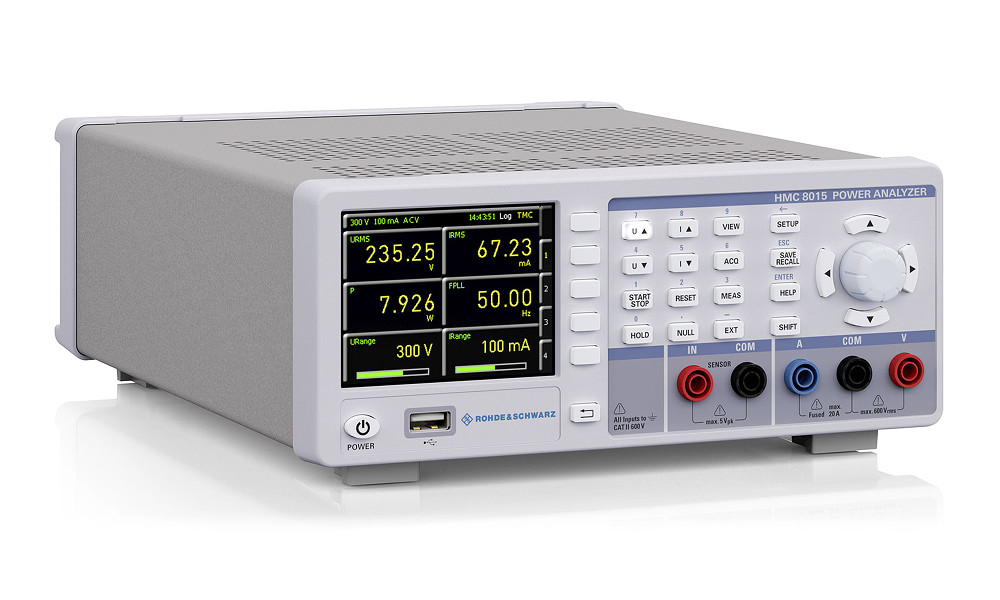

Rohde and Schwarz HMC8015
DISCONTINUED: Power Analyzer DC to 100kHz, 600V/20A
The HMC8015 power analyzer is a compact tester for AC/DC load and standby current characterization that enables measurements without additional tools such as a computer or remote infrastructure. In addition to a numerical and graphical display with 26 key parameters, the instrument supports performance and compliance protocols in line with IEC 62301, EN 50564 and EN 61000-3-2.
- Power measurement range: 50 μW to 12 kW
- Analogue bandwidth: DC to 100 kHz
- Sampling rate: 500 ksample/s
- 16‑bit resolution for current and voltage
- Basic accuracy: 0.05 %
- 26 different measurement and mathematical functions
- Genuine consumption meter thanks to hardware‑based integrator
- Limit testing with PASS/FAIL indication for up to six limits selectable from 14 measurands (e.g. U, I, P, S, Q, F)

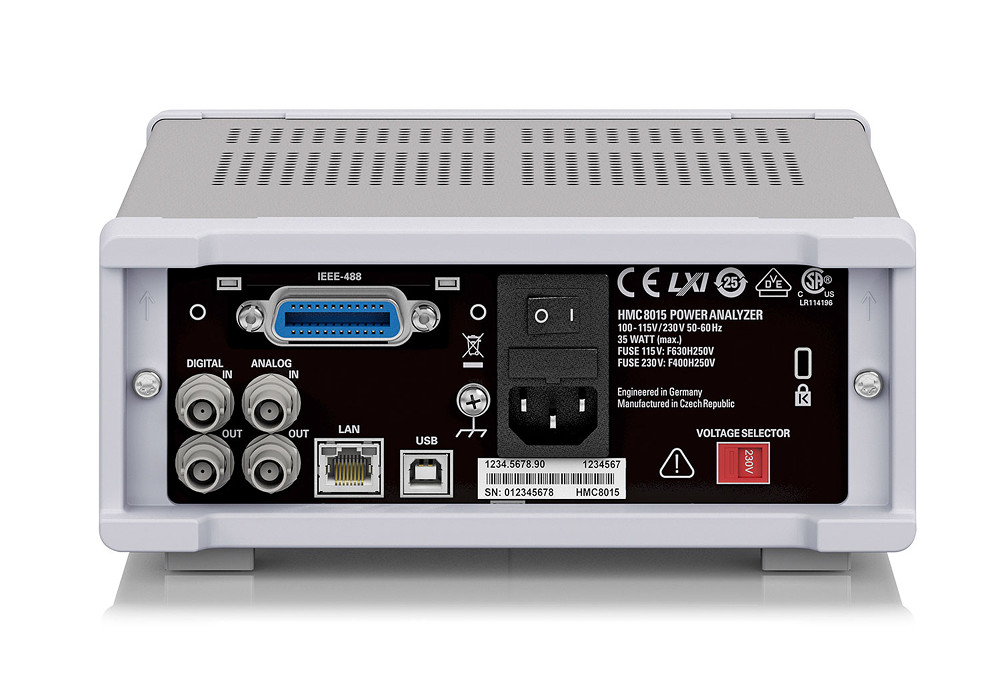

- 2U half rack width, rack kit for two units available (HZC95)
- USB port (virtual COM port, TMC)
- Ethernet port (LXI) with integrated web server
- IEEE-488 (GPIB) port (R&S®HMC8015-G)
- Compliance test for key standby and harmonic standards
- Remote control via SCPI-based commands
- Driver packages for LabVIEW, LabWindows/CVI, VXI, IVI.net
