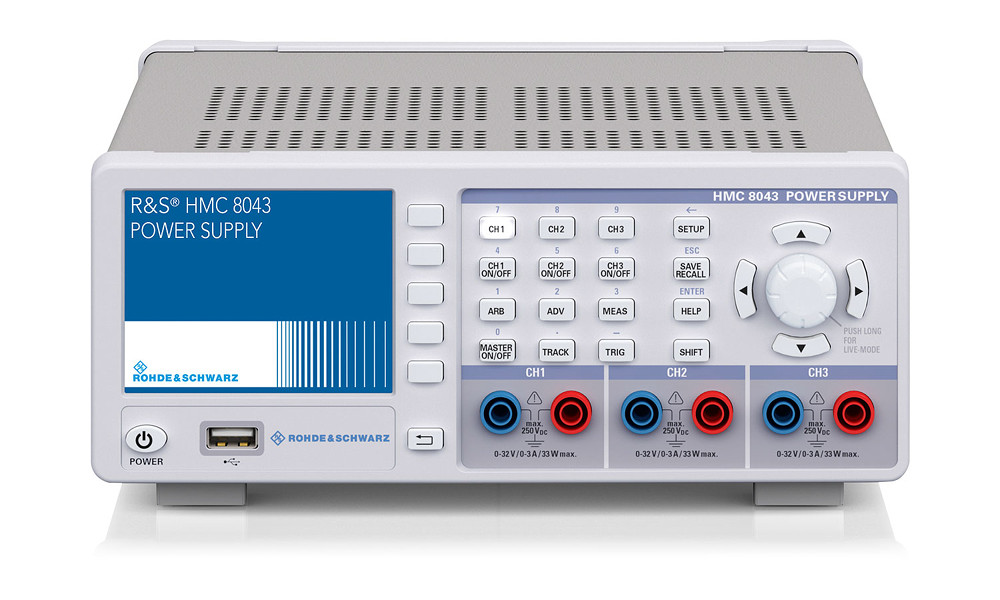

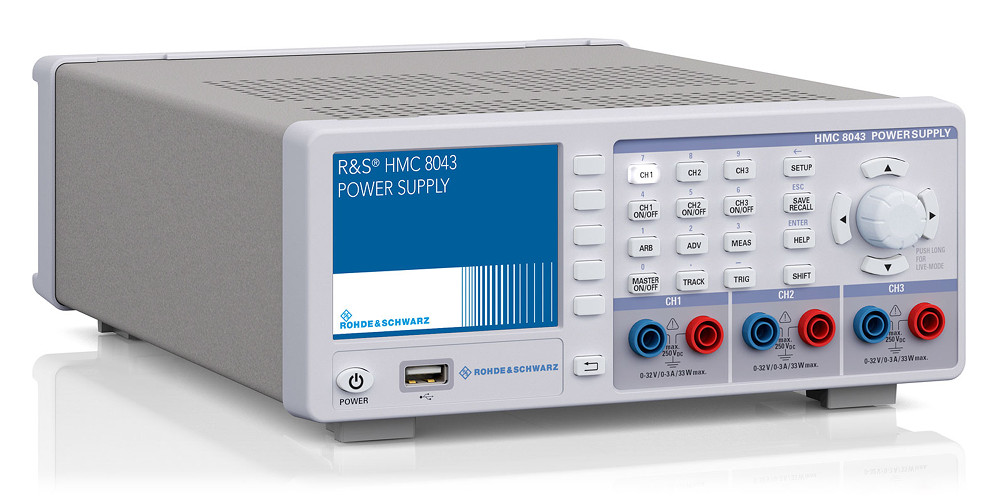

Rohde and Schwarz HMC804X Series
DISCONTINUED - DC Power Supply 100W with 1, 2, or 3 channels
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

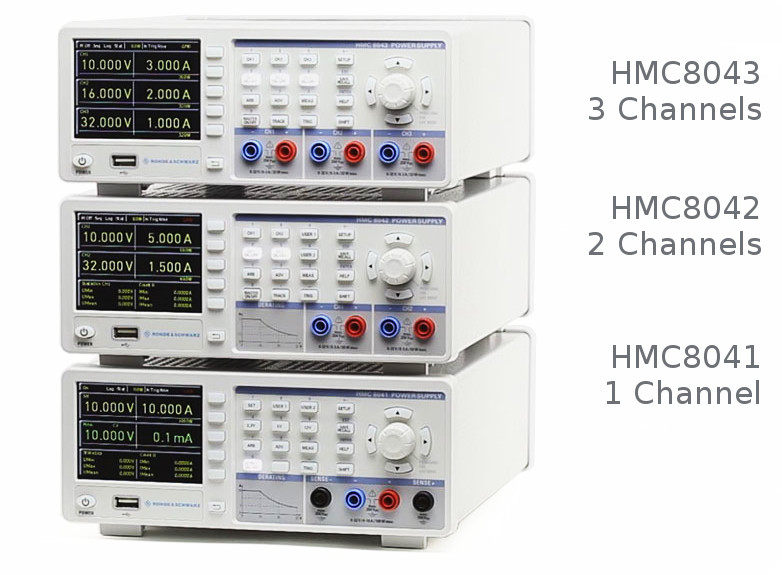

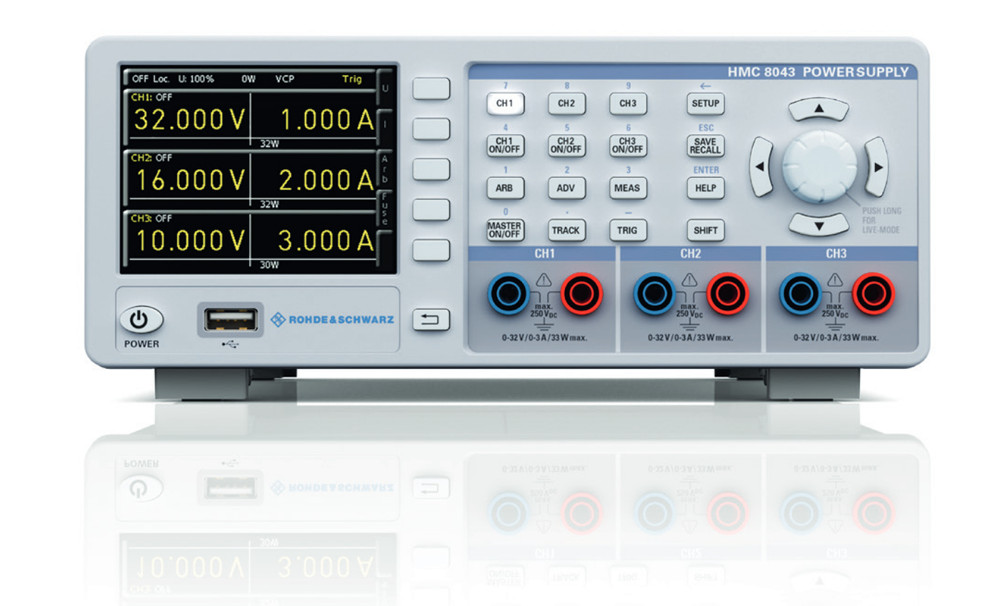

The R&S®HMC804x family consists of three models with a maximum total power of up to 100W and a continuous voltage range from 0 V to 32 V. The single channel HMC8041 delivers a maximum of 10 A, the two-channel HMC8042 a maximum of 5 A and the three-channel R&S®HMC8043 a maximum of 3 A per channel. The two-channel and three-channel models enable users to connect multiple outputs in parallel or in series to increase the voltage or current. The outputs are galvanically isolated, floating, and protected against overloading and short circuits. Voltage, current and power values are output on a colour QVGA display
- High energy efficiency, low heat dissipation and quiet fans
- Low residual ripple due to linear postregulation
- Convenient parallel and serial operation via V/I tracking
- LXI compliant LAN interface, USB and optional GPIB

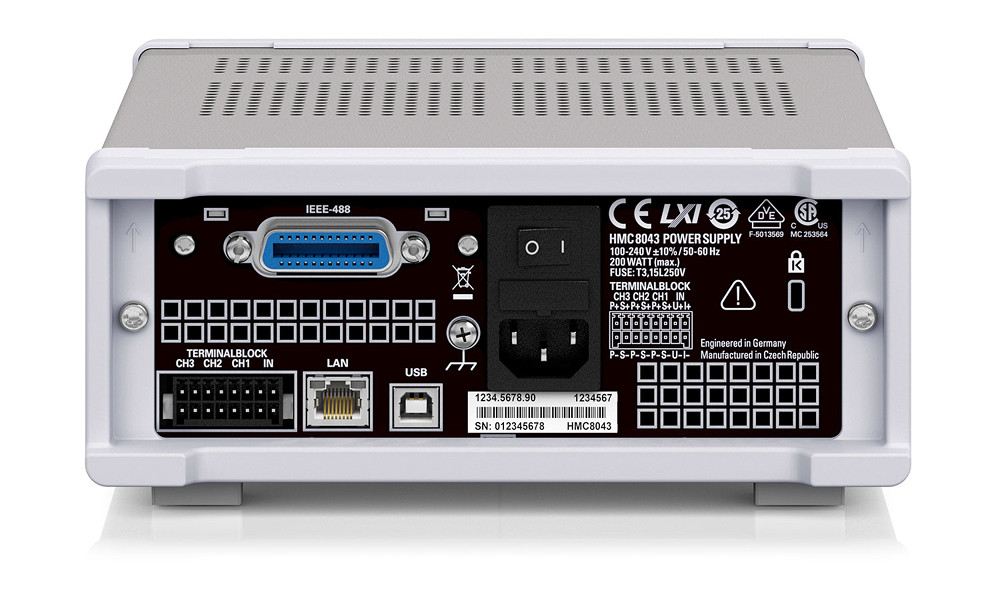

- All connectors, including sense, are available on the rear panel
- 2U half width rack format (requires 1U empty above for cooling)
Product Variants
There are no available products to list here. Please contact us if you can't find what you're looking for.
Data Sheet or Brochure
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
Rohde and Schwarz HMC804X DC power supplies clip
Super short clip introducing the HMC804X series DC power supplies
