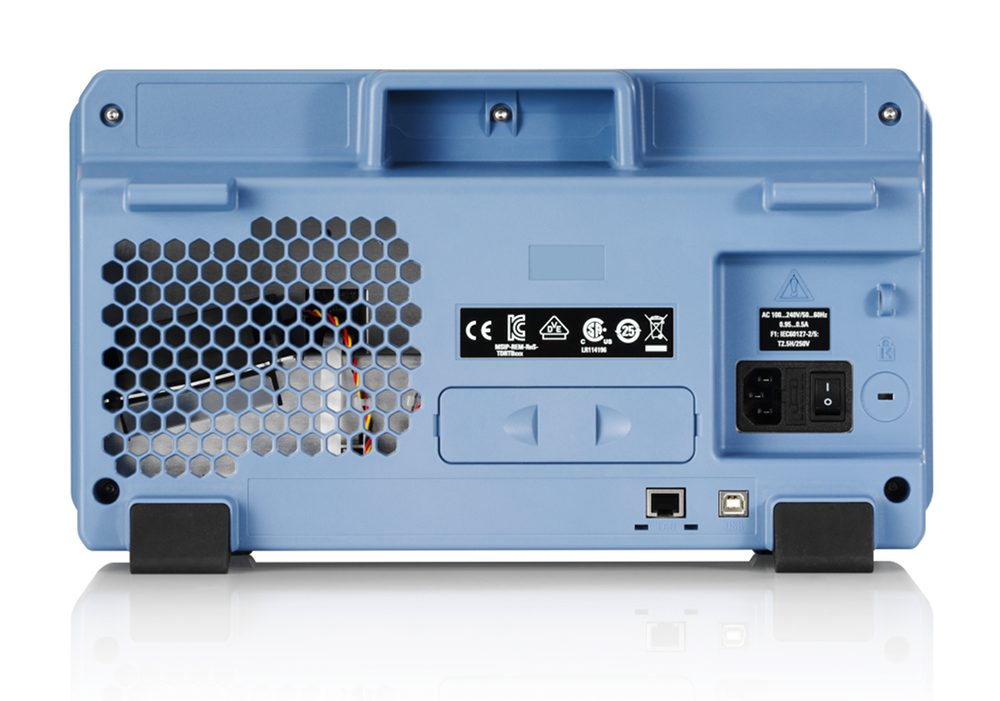

Rohde and Schwarz RTB2000EDU Series
Digital Oscilloscope - Educational Edition with 2 or 4 channel versions and bandwidth options
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
Power of ten (10-bit ADC, 10 Msample memory and 10.1" touchscreen) combined with smart operating concepts make the R&S® RTB2000 Digital Oscilloscopes the perfect tool for university laboratories. This is the Educational Edition which is only available to universities and educational institutions and comes heavily discounted with all available software options unlocked. It can be further upgraded with bandwidth options up to 300MHz and a 16 channel MSO option.
- 10.1" capacitive touch screen
- 70 MHz to 300 MHz Bandwidth options
- Up to 2.5 Gsample/s
- Up to 20 Msample memory depth
- 10 bit ADC resolution
- 16 digital channel MSO option, also as retrofit
Product Variants
| Model | Price | |
|---|---|---|
RTB2002EDUDigital Oscilloscope - Educational Edition 70MHz, 2 Channel |
POA | |
RTB2004EDUDigital Oscilloscope - Educational Edition 70MHz, 4 Channels |
POA |
Data Sheet or Brochure| Model | Description | Price | |
|---|---|---|---|
|
RTB-B1 |
Mixed Signal Upgrade for non-MSO RTB scope models |
£840.96 |
|
|
RTB-B221 |
Bandwidth upgrade RTB2002 scope to 100MHz |
£359.16 |
|
|
RTB-B222 |
Bandwidth upgrade RTB2002 scope to 200MHz |
£1,095.00 |
|
|
RTB-B223 |
Bandwidth upgrade RTB2002 scope to 300MHz |
£1,997.28 |
|
|
RTB-B241 |
Bandwidth upgrade RTB2004 scope to 100MHz |
£402.96 |
|
|
RTB-B242 |
Bandwidth upgrade RTB2004 scope to 200MHz |
£954.84 |
|
|
RTB-B243 |
Bandwidth upgrade RTB2004 scope to 300MHz |
£2,023.56 |
| Series | Model | Price | |
|---|---|---|---|
|
RTB-Z1 |
£87.60 |
||
|
RTB-Z3 |
£201.48 |
||
|
ZZA-RTB2K |
£236.52 |
