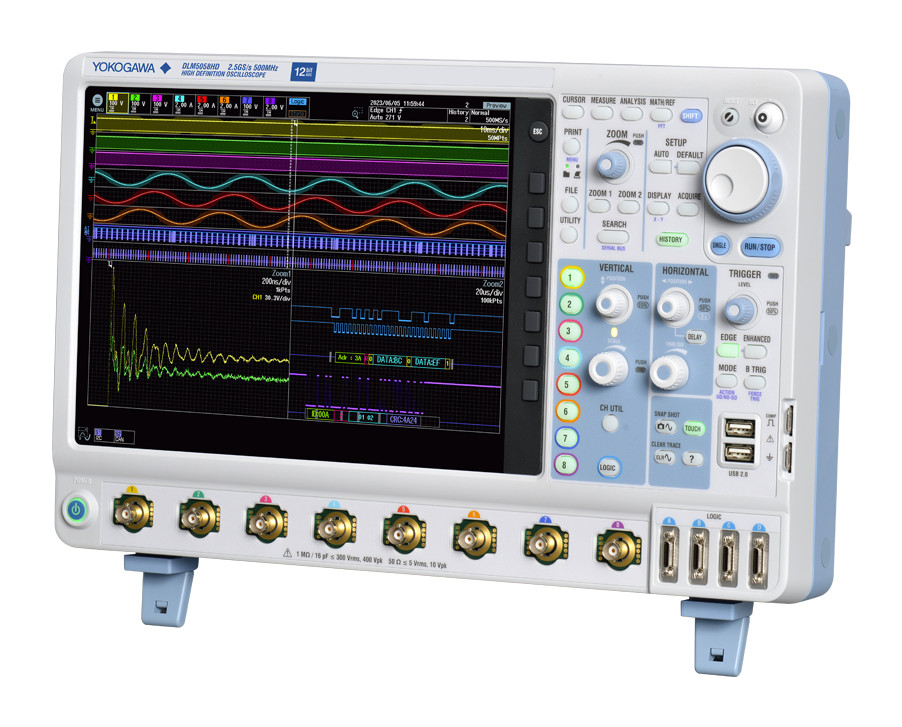

Yokogawa DLM5000HD Series

High Definition Oscilloscope series with 4 and 8 channel and 350 and 500MHz versions

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • 4 or 8 analogue channels, 16-bit logic + optional additional 16-bit logic
  • Bandwidth: 350 or 500MHz
  • Sample Rate: up to 2.5GS/s
  • Vertical resolution: 12bit
  • High resolution mode: up to 16bit
  • Measurement memory: up to 1 Gigapoints
  • History waveforms: up to 200,000 triggers
  • Simultaneous Multi-Channel Measurements: Up to 32 bit logic + 8 channels
  • Up to 16 channels with two connected DLM5000HDs via DLMsync
  • IEEE1588 Synchronous support
  • Highly-Responsive, Intuitive 12.1in touchscreen with traditional oscilloscope control panel
  • Superior Noise immunity
  • Logic and Serial Bus analysis
  • Additional maths channels
  • Extensive voltage ranges
  • Compact, Light, Portable

Product Variants

Model Price

DLM5034HD

High Definition Oscilloscope 4 ch, 350 MHz 		POA

DLM5038HD

High Definition Oscilloscope 8 ch, 350 MHz 		POA

DLM5054HD

High Definition Oscilloscope 4 ch, 500 MHz 		POA

DLM5058HD

High Definition Oscilloscope 8 ch, 500 MHz 		POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
Yokogawa Accessories
701917
Current Probe 50 MHz / 5 ARMS 		POA
Yokogawa Accessories
701918
Current Probe 120 MHz / 5 ARMS 		POA
Yokogawa Accessories
701919
Probe Stand - Round Base, 1 Arm 		POA
Yokogawa Accessories
701930
DC to 10MHz, 150A Current Probe 		POA
Yokogawa Accessories
701931
DC to 2MHz, 500A Current Probe 		POA
Yokogawa Accessories
701934
External Probe Power Supply 		POA
Yokogawa Accessories
701968
Soft Carry Case for DLM5000 		POA
Yokogawa Accessories
701969-E
EIA Rack Mount Kit for DLM5000 		POA
Yokogawa Accessories
701977
Differential Probe 7000 V / 50 MHz 		POA
Yokogawa Accessories
701978
Differential Probe 1500 V / 150 MHz 		POA
Yokogawa Accessories
702915
Current Probe 50 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS 		POA
Yokogawa Accessories
702916
Current Probe 120 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
