Vitrek PA900 Series

4 Channel Power Analyzer with different precision and channel card options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Three models with different precision and card options
  • High Precision with Industry leading noise floor
  • Up to 500 Harmonics at 400Hz, meets Airbus avionics harmonics measurement criteria.
  • Bar graph features fingertip selectable numeric amplitude and phase data
  • Large, Hi-Resolution Colour Display shows all the data you want with an easy-to-use touchscreen user interface to get you up and testing in no time

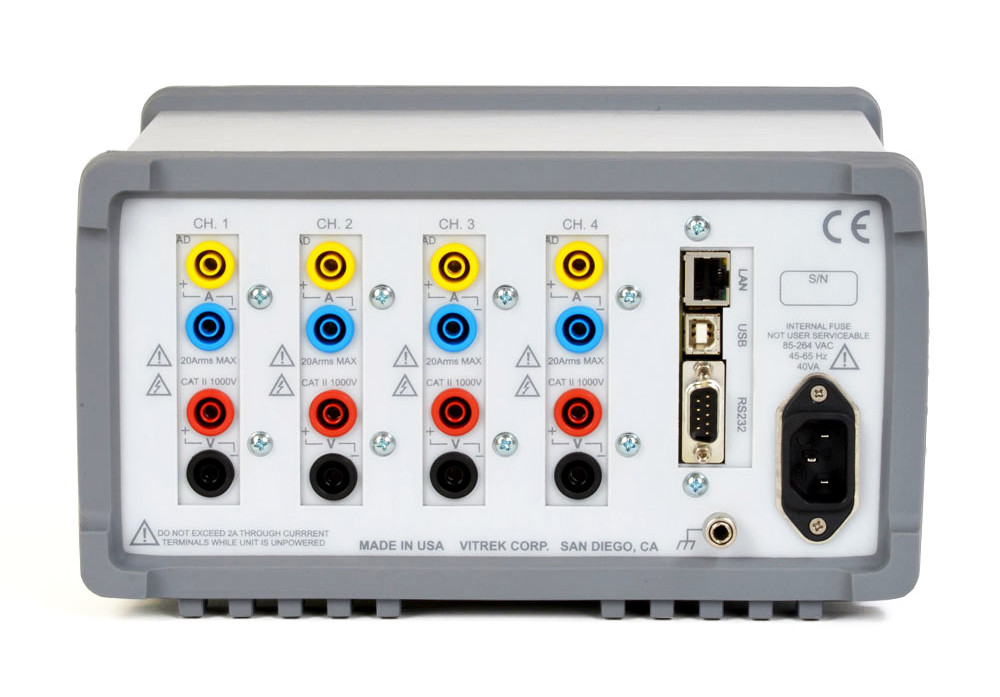

  • Modular design lets you choose up to 4 Power Measurement Channel Cards
  • Built-in Data Logger
  • Connectivity – Ethernet, High Speed Serial and USB (client) control interfaces

Product Variants

Model Price

PA900

4 Channel Power Analyzer 0.03% accuracy (A Card) mainframe (no cards included) 		POA

PA901AD

4 Channel Power Analyzer PA900 with a Single AD Channel Card 		POA

PA902AD

4 Channel Power Analyzer PA900 with Two AD Channel Cards 		POA

PA903AD

4 Channel Power Analyzer PA900 with Three AD Channel Cards 		POA

PA904AD

4 Channel Power Analyzer PA900 with Four AD Channel Cards 		POA

PA910

4 Channel Power Analyzer 0.045% accuracy mainframe (no cards included) 		POA

PA911VT

4 Channel Power Analyzer PA910 with a Single VT Channel Card 		POA

PA912VT

4 Channel Power Analyzer PA910 with Two VT Cards 		POA

PA913VT

4 Channel Power Analyzer PA910 with Three VT Cards 		POA

PA914VT

4 Channel Power Analyzer PA910 with Four VT Cards 		POA

PA920

4 Channel Power Analyzer 0.024% accuracy (UT Card) mainframe (no cards included) 		POA

PA921UT

4 Channel Power Analyzer PA920 with a Single UT Channel Card 		POA

PA922UT

4 Channel Power Analyzer PA920 with Two UT Cards 		POA

PA923UT

4 Channel Power Analyzer PA920 with Three UT Cards 		POA

PA924UT

4 Channel Power Analyzer PA920 with Four UT Cards 		POA
Model Description Price
AD
 PA900 A-type channel with dual current shunt input POA
AH
 PA900 A-type channel with high current shunt input POA
AX
 PA900 A-type channel card with external current transducer input POA
BT
 PA920 BT Channel Card - High Bandwidth Dual Shunt (1, 30A) POA
BX
 PA920 BX Channel Card - High Bandwidth External Current Transducer Input POA
KT
 PA920 KT Channel Card - Kilovolt Dual Shunt (1, 30A) POA
KX
 PA920 KX Channel Card - Kilovolt (1.6Vrms Continuous) External Current Transformer Input POA
MT
 PA900 MT Channel Card - Motor Transducer Channel Card (PA9xx slot 4 only) POA
SD
 PA900 S-type channel card with dual current shunt input POA
SH
 PA900 S-type channel card with high current shunt input POA
SX
 PA900 S-type channel card with external current transducer input POA
UT
 PA920 UT Channel Card - Dual Shunt (1, 30A) POA
UX
 PA920 UX Channel Card - External Current Transducer Input POA
VT
 PA910 VT Channel Card - Dual Shunt (1, 30A) POA
VX
 PA910 VX Channel Card - External Current Transducer Input POA
WD
 PA900 W-type channel card with dual current shunt input POA
WH
 PA900 W-type channel with high current shunt input POA
WX
 PA900 W-type channel card with external current transducer input POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
GP-900
GPIB interface in lieu of Ethernet, serial and USB interfaces 		POA
Accessories
HC-7X
Hard carrying case with die cut foam 		POA
Accessories
LPA-1
Universal line power adaptor 		POA
Accessories
RM-7
rack mount for v7x series 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
