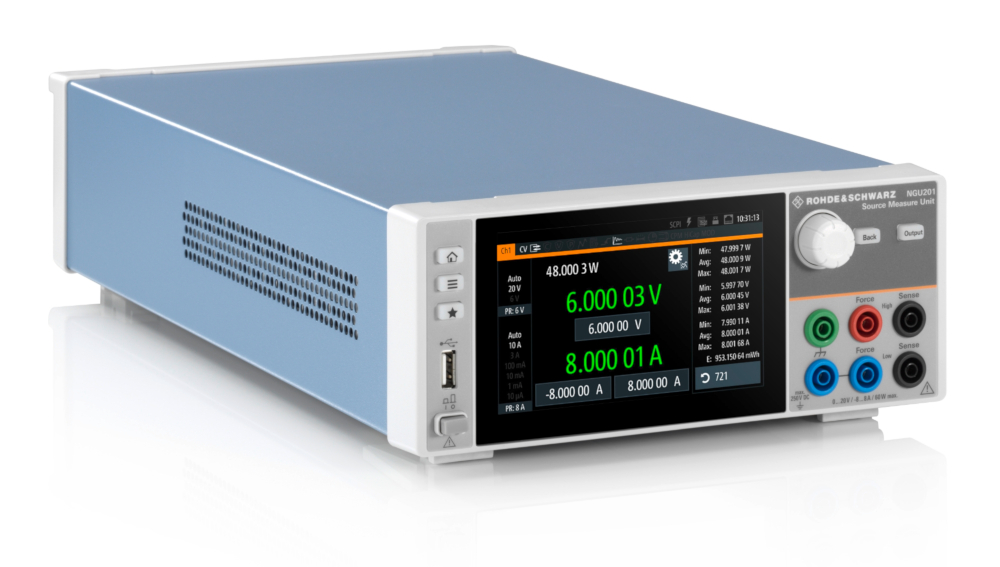

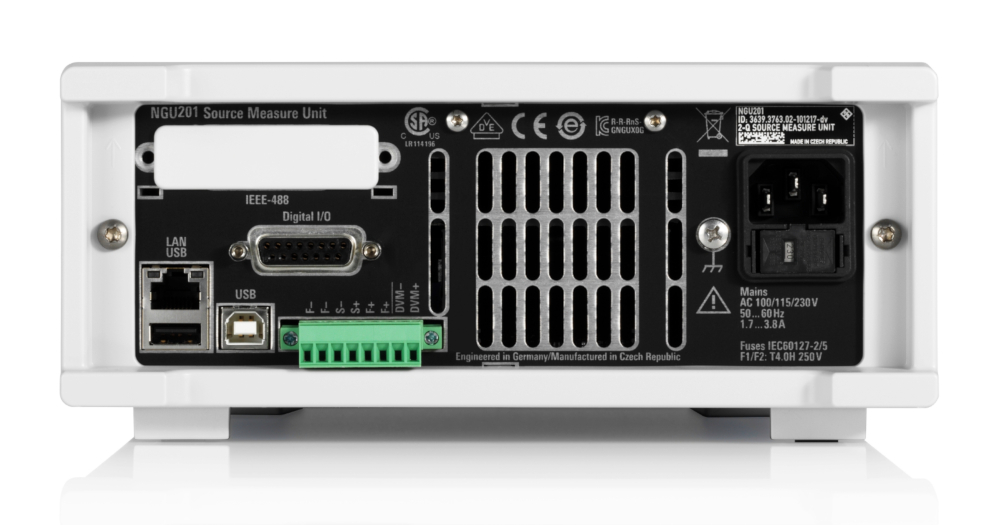

Rohde and Schwarz NGU Series

Source Measurement Unit with two and four quadrant models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Fast load regulation
  • Minimum residual ripple and low noise
  • Readings with up to 6½ digit resolution
  • Galvanically isolated, floating channels
  • Output stage isolated with relays
  • Voltage priority and current priority mode
  • High-capacitance mode
  • High speed data acquisition (FastLog function)
  • Protection functions to safeguard instrument and DUT
  • Safety limits to safeguard the DUT

NGU201: Two quadrants: operates as source and sink

  • Variable output impedance and constant resistance mode
  • Digital voltmeter (DVM) function option
  • Battery simulation option

NGU401: Four quadrants: source or sink operation with arbitrary polarity, 60W/8A

  • Modulation input

NGU411: As NGU401 but 20W/2A

Product Variants

Model Price

NGU201

Source Measurement Unit two quadrant
£6,570.00

NGU401

Source Measurement Unit four quadrant, 60W/8A
£6,070.68

NGU411

Source Measurement Unit four quadrant, 20W/2A
£3,933.24
Model Description Price
NGU-B105
 IEEE-488 (GPIB) option for NGU series
£394.20
NGU-K103
 Digital trigger I/O ports for NGU series
£297.84
NGU-K104
 Voltmeter functionality for NGU series
£297.84
NGU-K106
 Battery simulation option for NGU series
£814.68
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
HZN96
19” rack adapter, 2U
£289.08
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
