Yokogawa GS820 Series
2 Channel precision Source Measure Unit with 18V or 50V and 2 or 16 TTL Digital I/O options

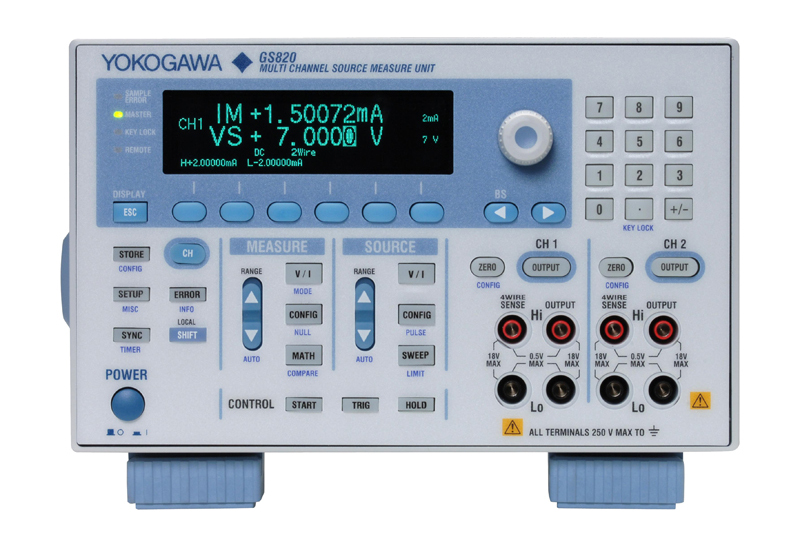

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
Precision 2 channel SMU. Four-quadrant operation consisting of source operation (current source) and sink operation (current sink) is available with ranges up to 7 V and 3.2 A or 18 V and 1.2 A. The output and measurement resolutions are 5.5 digits.
- Isolated 2-channel source and measurement function
- Source and measurement ranges:
- 18V model: 7 V and 3.2 A or 18 V and 1.2 A
- 50V model: 20 V and 1.2 A or 50 V and 0.6 A
- 1 pA resolution at extremely small current range 200 nA
- Generate arbitrary waveforms consisting of up to 100,000 points at 100 μs intervals
- Channel expansion through master-slave synchronization link
- Fast test speeds
- 16-bit digital I/O (models 765602/12)
