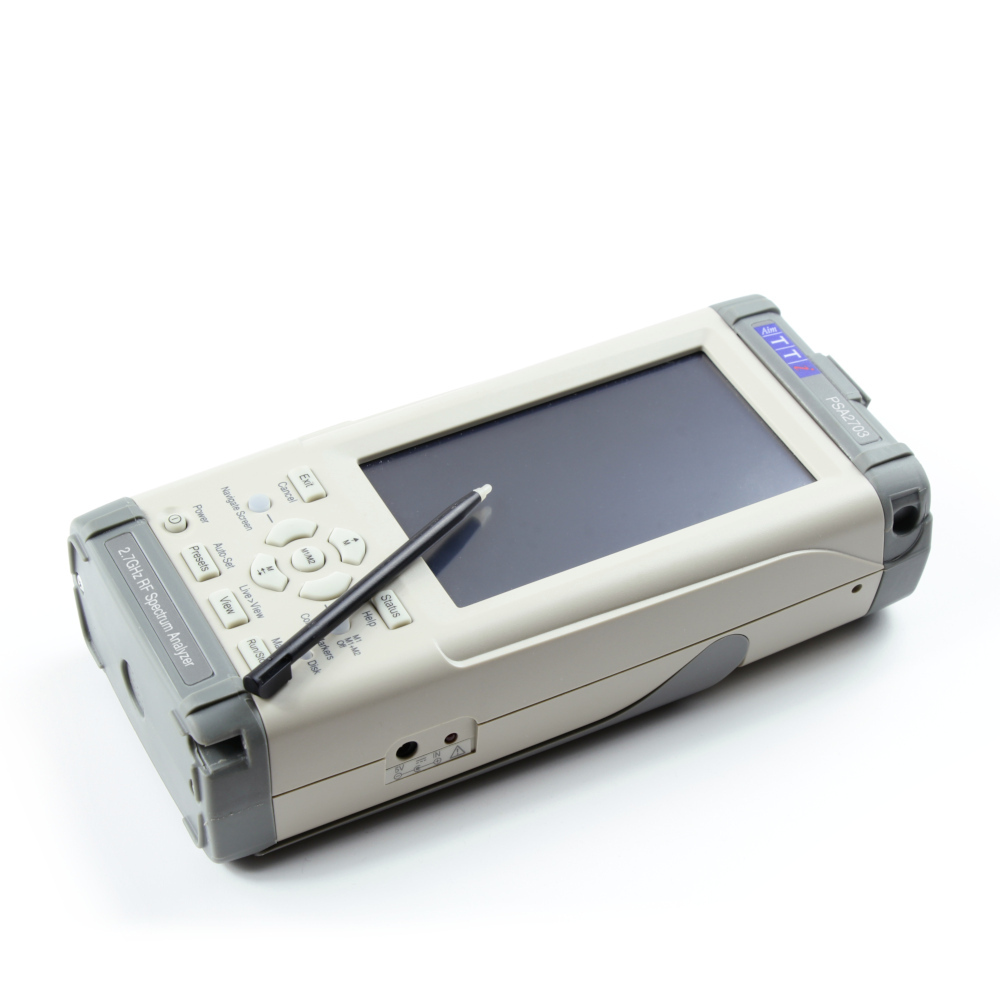

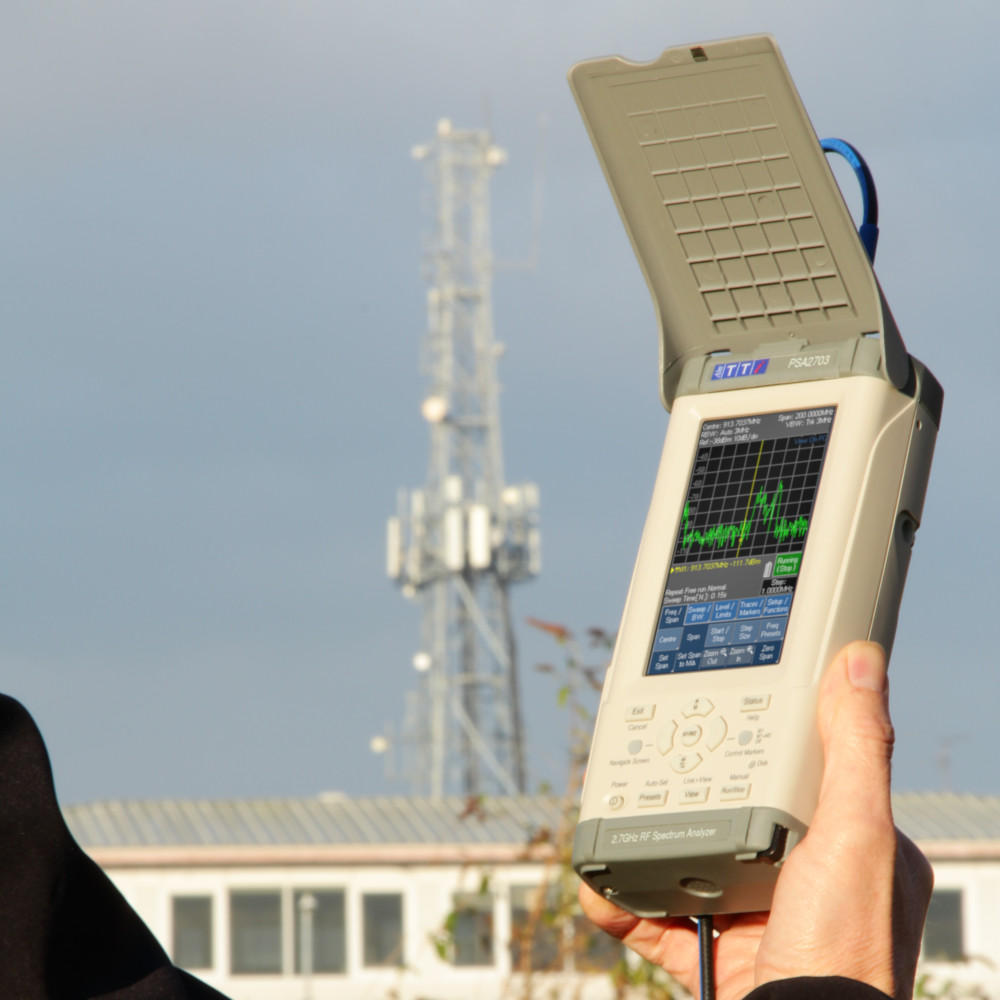

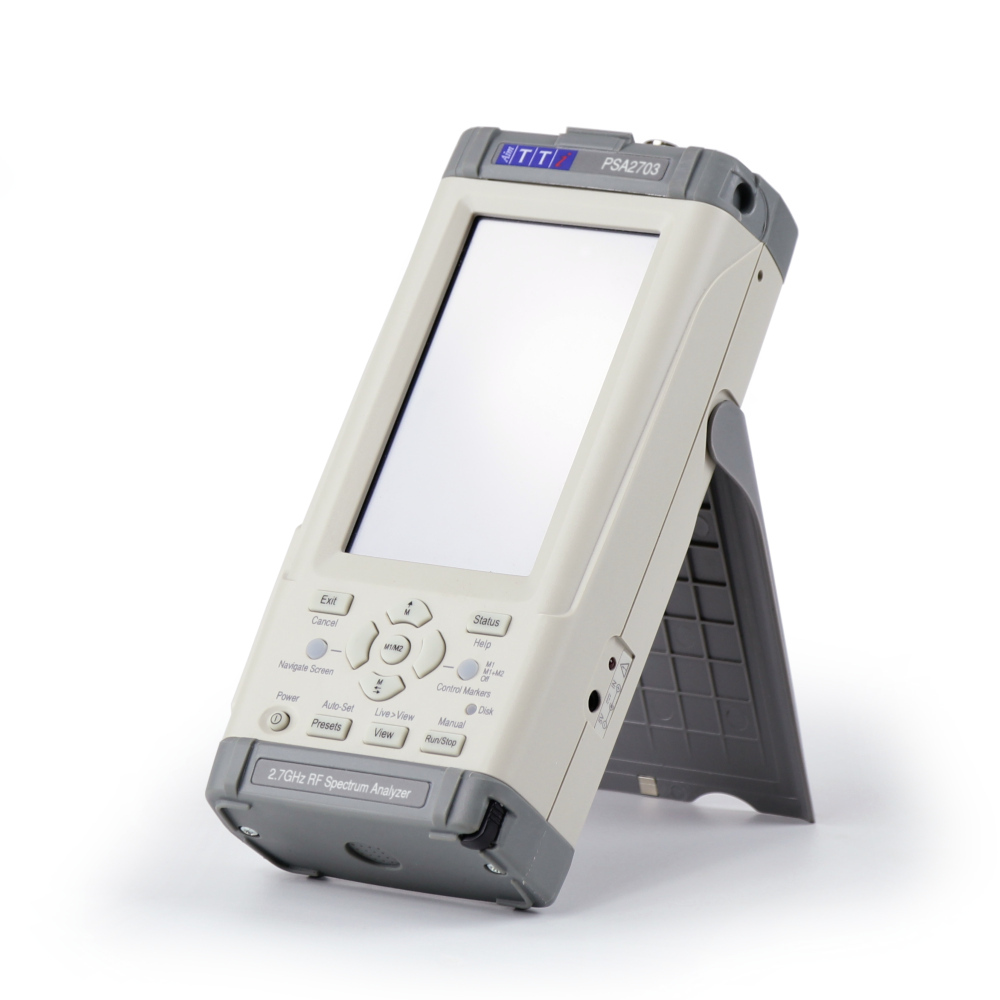

Aim-TTi PSA Series 3

True handheld battery powered RF spectrum analyzers

• 1MHz to 1300MHz (PSA1303) or 2700MHz (PSA2703) frequency range
• Resolution bandwidths of 300Hz to 10MHz 1:3:10
• -115dBm typical noise floor at -40dBm reference level
• Measurement in dBm or dBμV, mV or μW
• Zero span mode with AM and FM audio demodulation
• Trace modes of normal, peak hold and trace average
• Live, View (copy) and Reference traces in contrasting colours
• Twin markers with readout of absolute & difference values
• Smart marker movement with selectable peak tracking
• Frequency counter with 10Hz Resolution
• Frequency presets and independent state storage
• Auto-find automatically sets sweep parameters for the highest signal found
• Unlimited storage for waveforms, set-ups and screens
• User assignable file names, file stamping from real-time clock
• USB interfaces for Flash drives and PC connection
• Comprehensive status and context sensitive help screens
• Up to 6 hours continuous battery operation from a charge
• Smaller and lighter than other spectrum analyzers (weight only 0.58 kg)

  OPTION U01 ADDS:

• Limit lines and limit patterns with limits comparator
• Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
• Sweep triggering from external trigger or limits comparator
• Compensation tables, fixed offsets and 75 Ohm compensation
