BINDER ED Series

Convection Drying and Heating chamber with models from 20 to 743L

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line™ technology
  • Natural convection

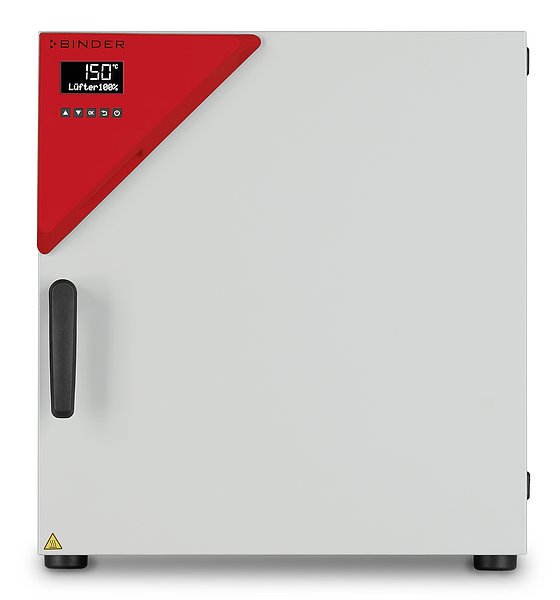

  • Controller with LCD display (Avantegarde.Line) or LED (Classic.Line, Solid.Line)
  • Electromechanical control of the exhaust air flap

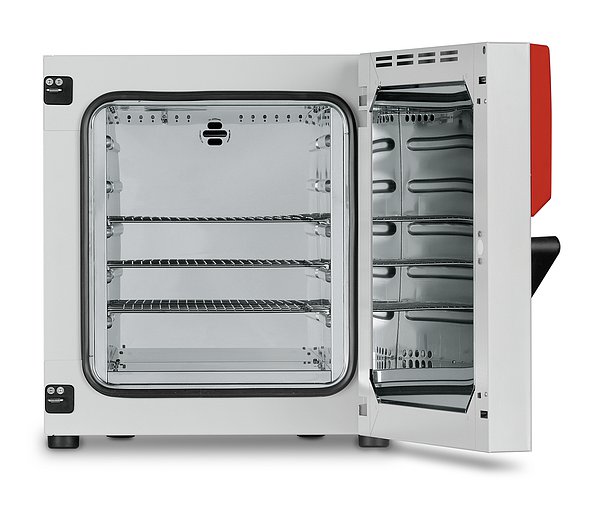

  • 2 chrome-plated racks
  • Units up to 115 litres are stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data (Avantegarde.Line)



Product Variants

Model Price

ED023-230V

Convection Drying and Heating chamber Classic.Line 20L, 230V 		POA

ED023-230V-I

Convection Drying and Heating chamber Classic.Line 20 L, 230 V with RS 422 		POA

ED056-230V

Convection Drying and Heating chamber Avantgarde.Line 56 L, 230 V 		POA

ED115-230V

Convection Drying and Heating chamber Avantgarde.Line 115 L, 230 V 		POA

ED260-230V

Convection Drying and Heating chamber Avantgarde.Line 260 L, 230 V 		POA

ED400-400V-I

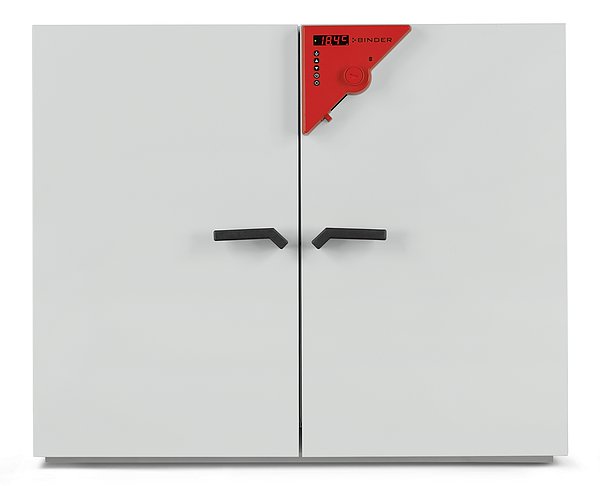

Convection Drying and Heating chamber Classic.Line 400L, 400V 3~ with RS 422 		POA

ED720-400V

Convection Drying and Heating chamber Avantgarde.Line 743 L, 400 V 3~ 		POA

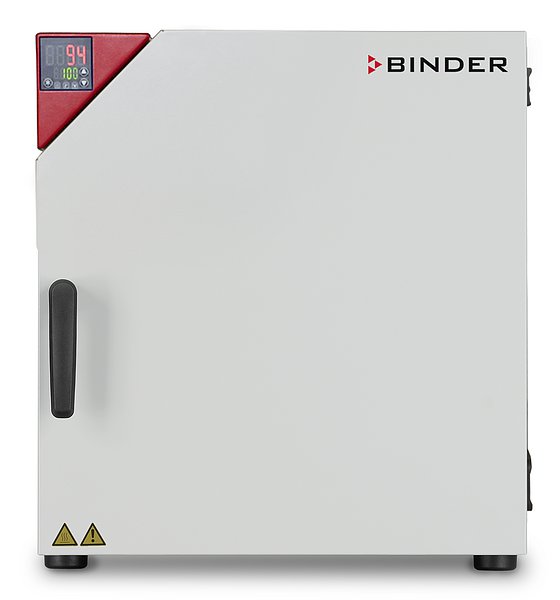

EDS056-230V

Convection Drying and Heating chamber Solid.Line 62 L, 230 V 		POA

EDS115-230V

Convection Drying and Heating chamber Solid.Line 118 L, 230 V 		POA
