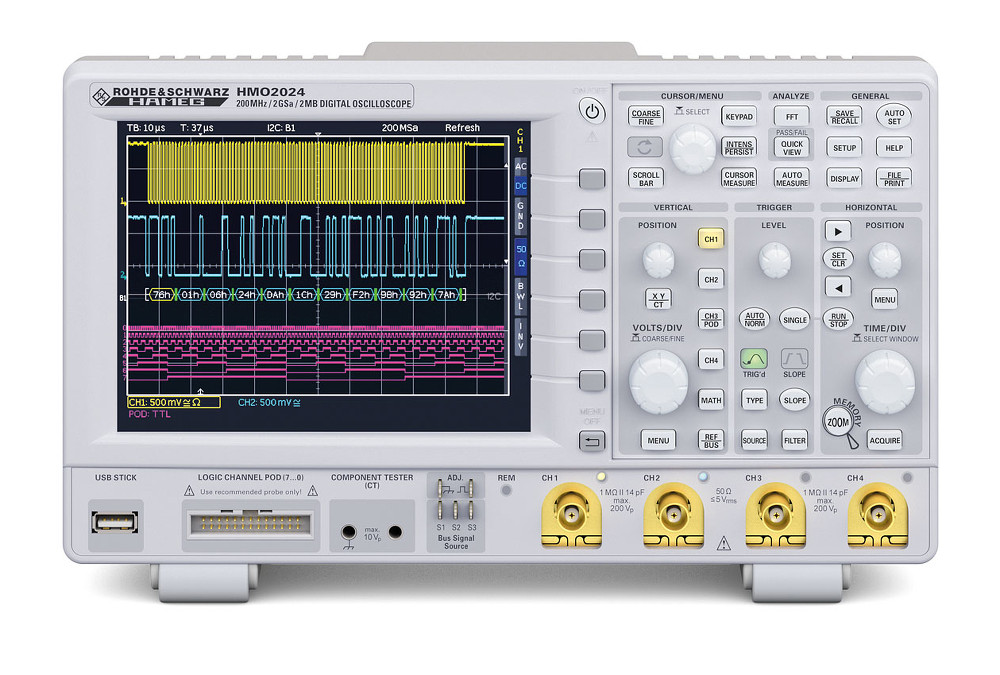

Rohde and Schwarz HMO Compact Series

DISCONTINUED - Mixed Signal Oscilloscope models from 70 to 200MHz, 2 or 4 channels

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

Please see the HMO1002 and HMO1202 series as alternatives.

  • 2 Gsample/s realtime sampling rate, low-noise flash A/D converter
  • 2 Mpoint memory, zoom up to 50 000:1
  • MSO functionality included as standard (HO3508 logic probe with eight channels required)
  • Component tester for capacitors, inductors and semiconductors
  • Vertical sensitivity down to 1 mV/div
  • Trigger modes: slope (A/B), pulse width, video, logic, serial buses (optional)
  • Serial bus trigger and hardware-accelerated decode including list view options: I2C + SPI + UART/RS-232 (HOO10/HOO11), CAN + LIN (HOO12)
  • 28 automeasurement parameters plus statistics, formula editor, ratio cursor
  • Six-digit hardware counter
  • FFT up to 64 kpoints (dBm, dBV, V (RMS))
  • Pass/fail test based on masks
  • Automatic search for user-defined events
  • Display: 12-div x-axis, 20-div y-axis (VirtualScreen)
  • 2 x USB for mass storage, RS-232/USB dual interface for remote control
  • This product series was previously branded HAMEG
